CPT-I Basic Model Low Price CT PT Tester for Transformer Testing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | CPT-I Basic Model Low Price CT PT Analyzer | Functions | Test Parameters Of Various Kinds Of Transformer |
|---|---|---|---|
| Applicable Transformer | <110kV, >2.5VA Transformer | Knee Point Voltage | 1kV |
| Max. Test Voltage | 1kV | Size | 420*330*320mm |
| Weight | 24kg | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
| Highlight | low price CT PT tester,transformer testing equipment,basic model transformer tester |
||
Product Description
Basic Model CT PT Tester -- Model: CPT-I
Introduction:
- CPT-I CT PT Tester is a special instrument for testing characteristic of CT and PT.
- CPT-I CT PT Tester can finish CT/PT transformation ratio test, CT/PT polarity test, volt-ampere feature curve drawing and CT error drawing.
- CPT-I CT PT Tester has large output, high precision,stable performance and automatic testing.
Features:
-
CT/PT transformation ratio test
-
CT /PT polarity test
-
CT /PT volt-ampere feature curve measurement
-
CT ratio error measurement
-
Error curve measurement
-
Result print
-
Unload data to PC
-
PC online test
Parameters:
| Input voltage | Output scope | Measuring Range | Measuring degree | ||||
| Device main engine | 220V | 0～600V 0～20A | 0～600V 0～20A | 0.5% | |||
| 380V | 0～1000V 0～20A | 0～1000V 0～20A | 0.5% | ||||
| 220V | 0～600A | 0～600A | Transformation ratio measuring precision 1% | ||||
| External voltage raising machine | 220V | 0～1650V 0～3A | 0～1650V 0～3A | 0.5% | |||
| 380V | 0～2000V 0～3A | 0～2000V 0～3A | 0.5% | ||||
| External current raising machine | 220V | 0～1000A | 0～1000A | Transformation ratio measuring precision 1% | |||
| External voltage adjustment machine | 0～1000V, 0～30A | 0.5% | |||||
| Device working power | 220V/380V 50HZ | External dimensions | 420*330*320mm | Weight | 24kg | ||

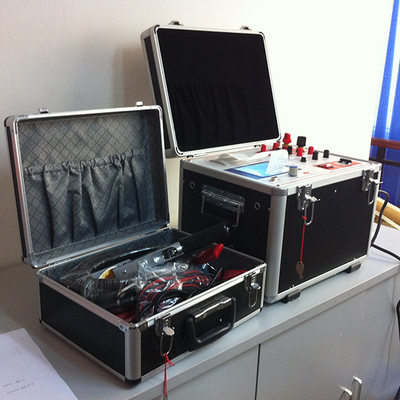

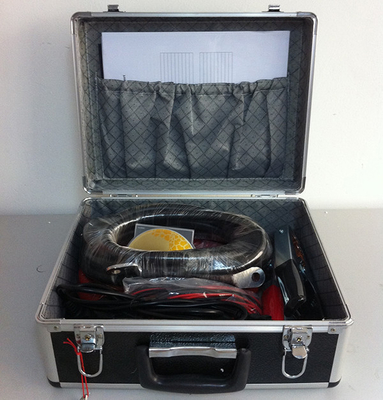

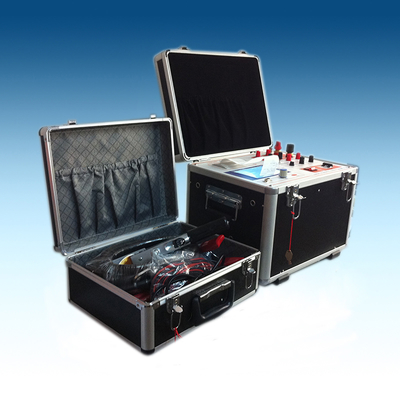

Real Picture:
