Sr Digital Display Generator Power Waveform Recorder
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SR |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | Sr Digital Display Generator Power Waveform Recorder Packed in veneer case |
| Delivery Time | 10days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | 24 Channels Input Portable Instantaneous Signal Re | Functions | Automatic Digital Display Waveform Recorder |
|---|---|---|---|
| Test Standards | IEC60076-18 | Test Range | Test Range |
| Sweep Mode | Linear, Section | Display | Through The LCD Touch Screen |
| Size | 448mm*260mm*150mm | Weight | <10kg |
| Warranty | 1 Year |
Product Description

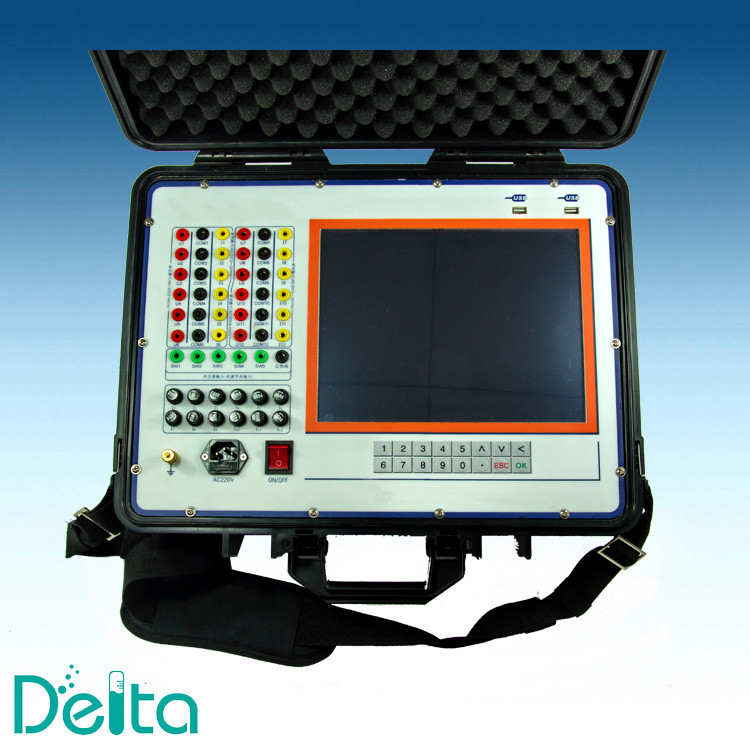

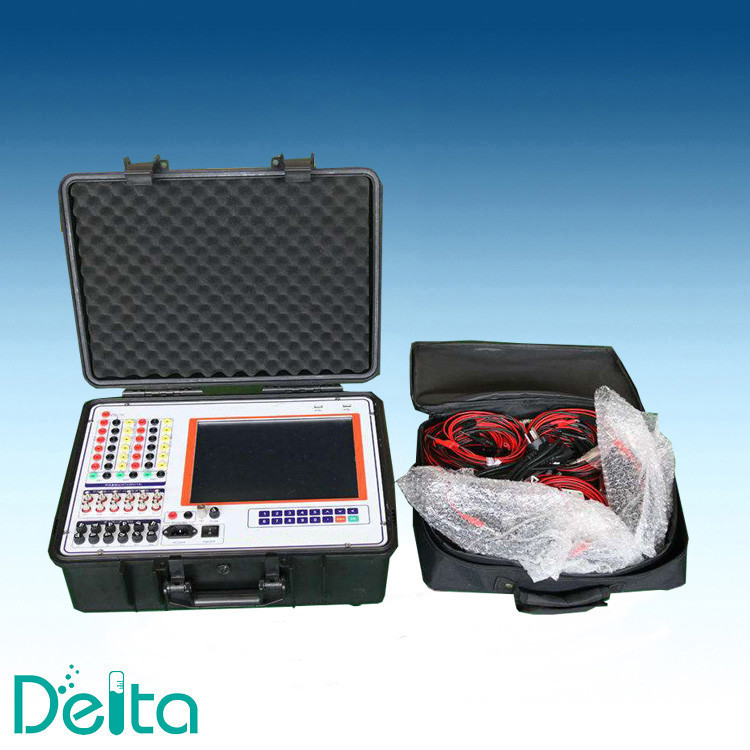

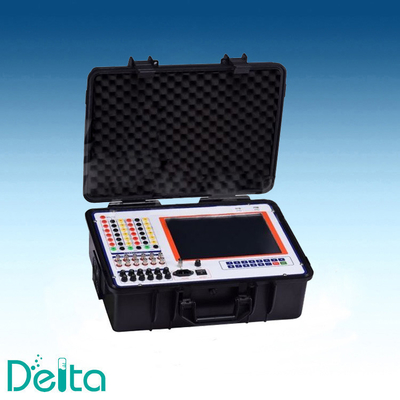

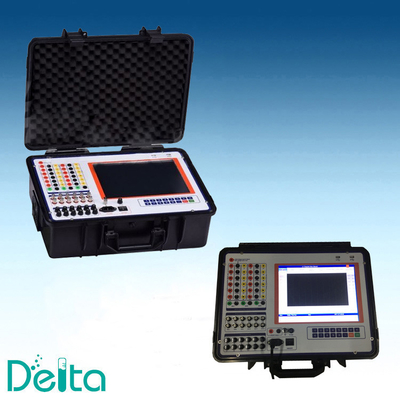

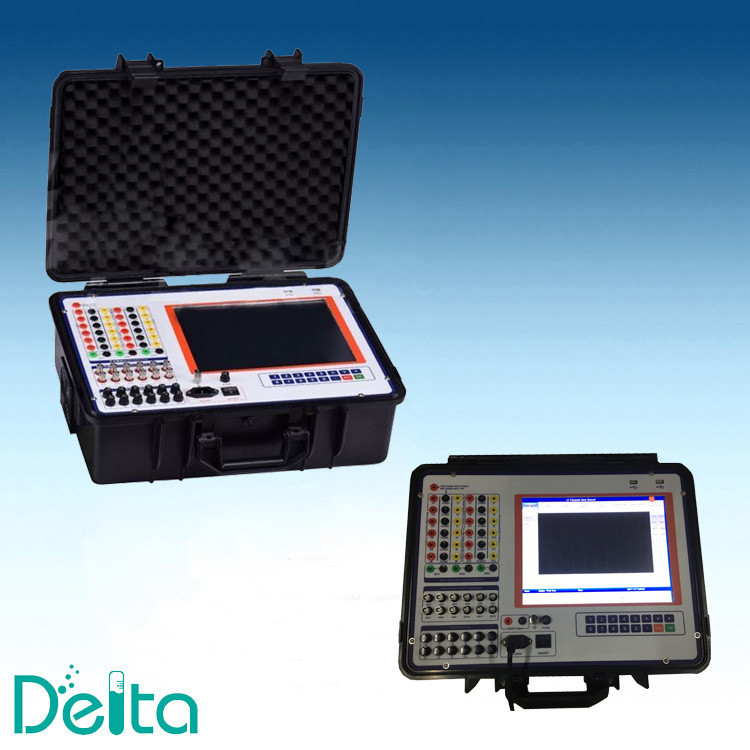

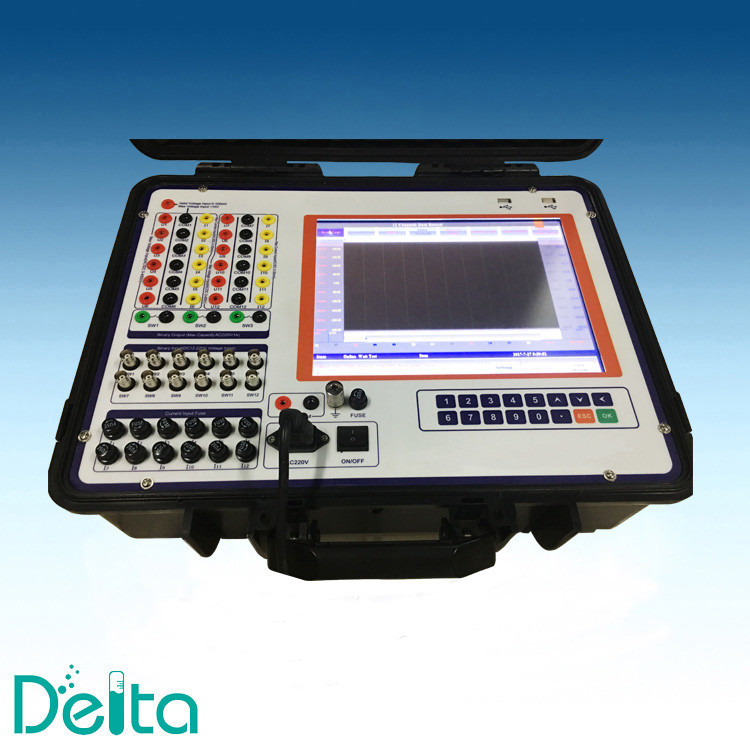

Sr Digital Display Generator Power Waveform Recorder
Introduction:
SR Digital Display Generator Power Waveform Recorder is designed for power signal recording.
The power generator test items are integrated at the tester.
It can do following tests for motor (power generator):
No-load test,
Short circuit test,
Motor excitation step response test,
Motor excitatory de-excitation test,
Motor load rejection test,
Grid synchronous connection test,
and also on.
Specifications:
| . | Item Name | Sr Logger for Generator Excitation Testing |
| 1 | Analog signal sample channels | 12 |
| 2 | Optional ranges | -450V~450V,-100V~100V,~10V~10V,-20mA~20mA, -100mV~100mV(only 1 channel) |
| 3 | Sample error | -450V~450V: error<0.5V |
| -100V~100V: error <0.2V | ||
| -10V~10V: error <0.01V | ||
| -20mA~20mA: error <0.02mA | ||
| -100mV~100mV: error<0.5mV | ||
| Input resistances for different channels | -10V~10V: 820K | |
| -200V~200V: 820K | ||
| -400V~400V: 820K | ||
| -20mA~20mA: 820K | ||
| -100mV~100mV: 10M | ||
| 4 | Binary signal input interface | 12 |
| 5 | Binary signal voltage ranges | DC 12~220V |
| 6 | Power supply | AC220V±10% |
| 7 | Power frequency | 45Hz-65Hz |
| 8 | Power consumption | ≤60w |
| 9 | Working environment | -10~50ºC, humidity ≤85%RH |
| 10 | Dimension | 448mm*260mm*150 mm |
| 11 | Weight | <10kg |
Sr Digital Display Generator Power Waveform Recorder SFRA:
