China Best Transformer Winding Resistance Tester 5A 10A 20A 40A 100A
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | WRT |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | China Best Transformer Winding Resistance Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | China Best Transformer Winding Resistance Tester 5A 10A 20A 40A 100A | Description | Winding Resistance Tester 5A 10A 20A 40A 100A |
|---|---|---|---|
| Other Name | Winding Resistance Tester, DC Resistance Tester | Test Current | 1A, 2A, 5A, 10A, 20A, 40A, 50A, 100A |
| Voltage Output | 20V | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Specification | 57cm * 44cm *34cm |
Product Description
WRT China Best Transformer Winding Resistance Tester
Introduction:
WRT Series Transformer Winding Resistance Tester is a high precision new generation product that can replace DC Wheatstone Bridge and double-arm Bridge.
WRT Transformer Winding Resistance Tester adopts the advanced starting power constant current source technology, uses four digit and half LCD display value and three digit and half LCD displays the ambient temperature or test current value, it overcomes the shortcoming that the LED display ambient value reading of other similar product is not convenient to read under the sun, at the same time it has the automatic arc extinguishing function.
WRT Transformer Winding Resistance Tester is an ideal equipment for measuring transformer winding and large power output inductor equipment.
Features:
-
WRT Transformer Winding Resistance Tester is suitable for large-scale transformer above240MVA in temperature rising tests.
-
840MVA transformer low-voltage direct-resistance tester completed within 2 minutes and the data is stable and accurate.
-
Dual-channel shows the measurement data at the same time.
-
Each interval of 60 seconds automatically print data.
-
Equipped with temperature conversion software, curve waveforms.
Parameters:
| Item | WRT-2 | WRT-10 | WRT-20 | WRT-40 | WRT-100 | WRT-20S |
| Test current | 2A | 10A | 20A | 40A | 25A,50A, 100A | Single phase:1A,5A,10A,20A, 40A Three phase: 1A, 5A, 10A, 20A |
| Measuring range | 1μΩ~ 4.5kohm | 1μΩ~ 20kohm | 1μΩ~ 10kohm | 1μΩ~ 10kohm | 50μΩ-200mΩ(100A)
100μΩ-400 mΩ(50A)
200μΩ-800 mΩ(25A) | Single phase: 10mΩ～20Ω(1A) 1 mΩ～4Ω(5A) 1 mΩ～2Ω(10A) 1 mΩ～1Ω(20A) 1 mΩ～0.5Ω(40A)
Three-phase: 10 mΩ～6Ω (1A,each phase) 1 mΩ～1Ω (5A,each phase ) 1 mΩ～0.6Ω (10A,each phase ) 1 mΩ～0.3Ω (20A,each phase ) |
| Resolution | 1μΩ | |||||
| Max. Error | 0.2%RDG+2D | |||||
| Voltage output | 20V | |||||
| Resolution | 1μΩ | |||||
| Power supply | AC220V±10%% 50Hz/60Hz | |||||
| Working environment | -10℃-+40℃ RH≤85% | |||||

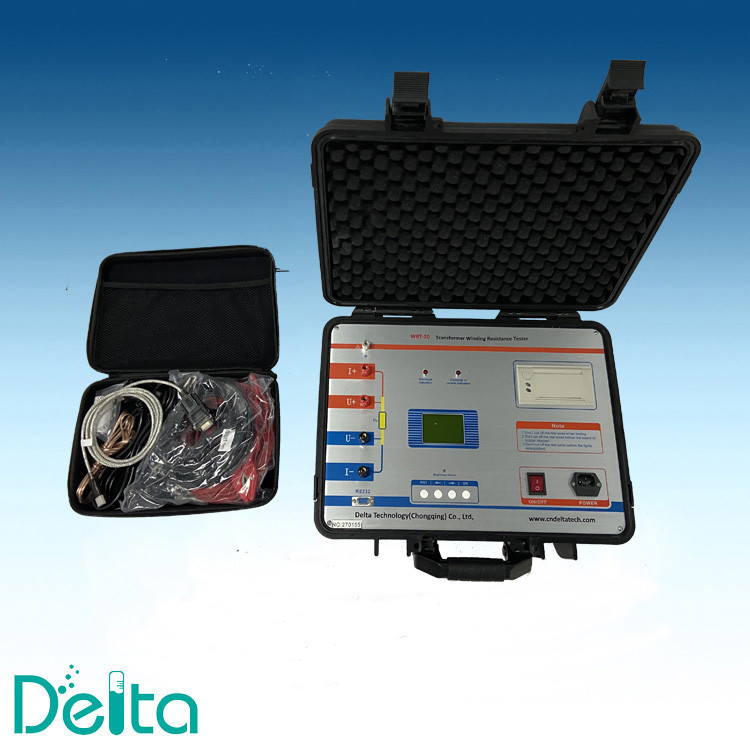

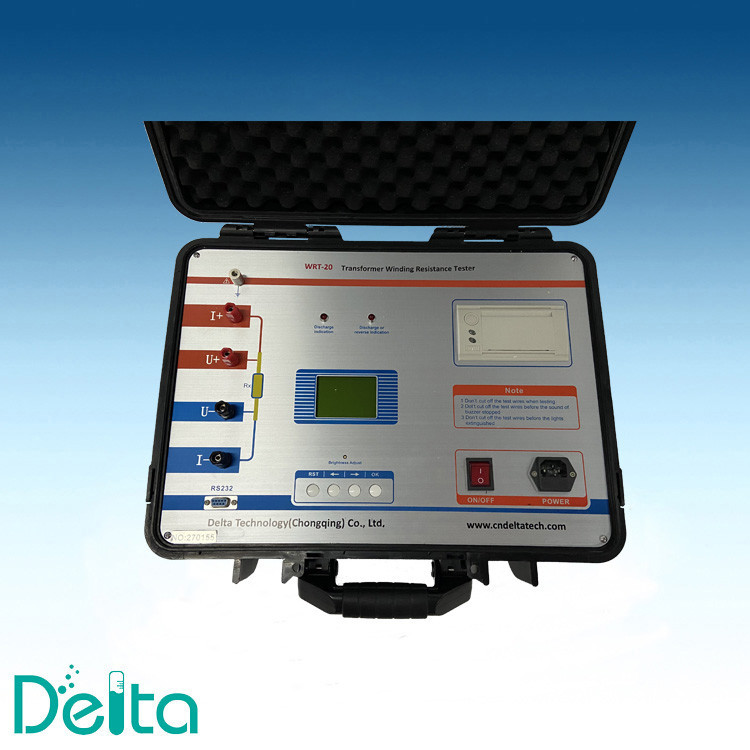

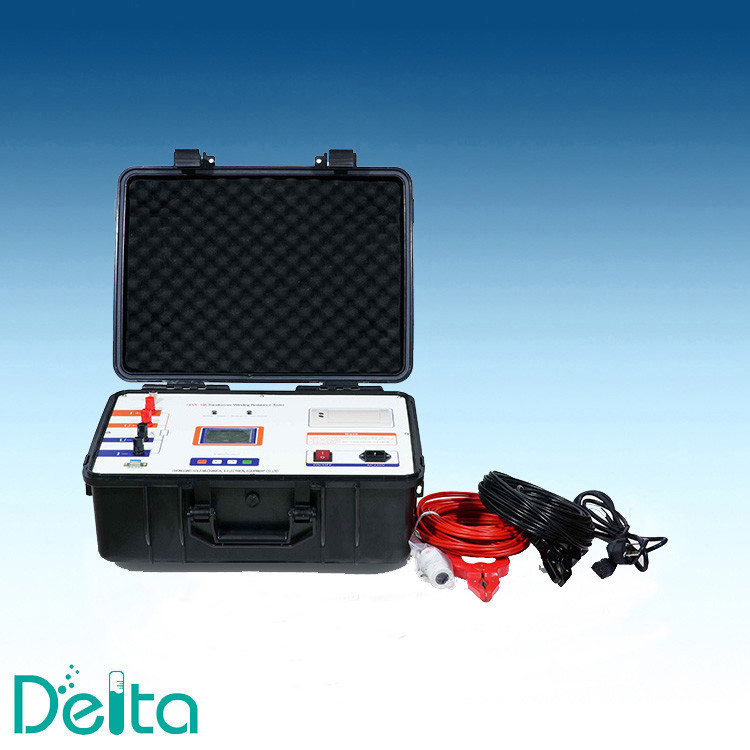

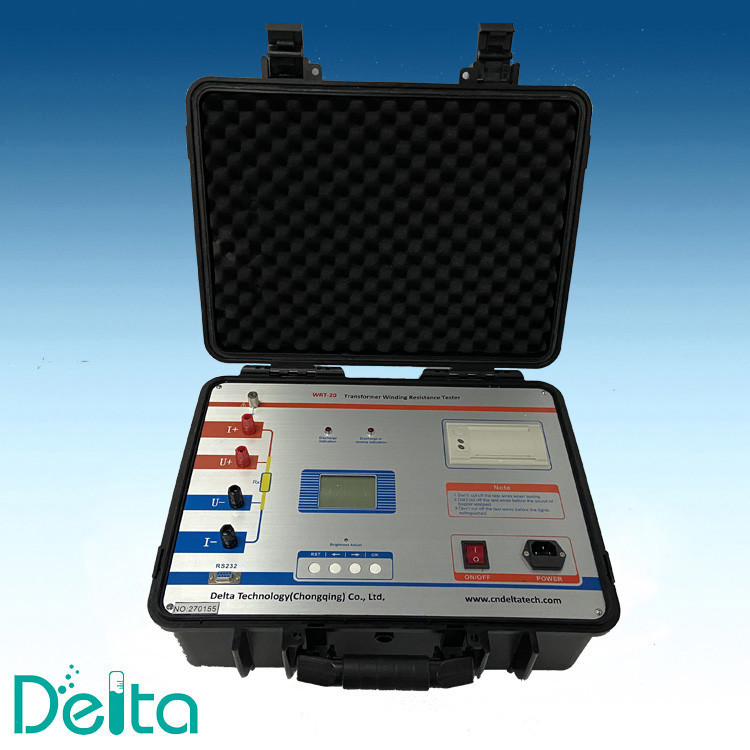

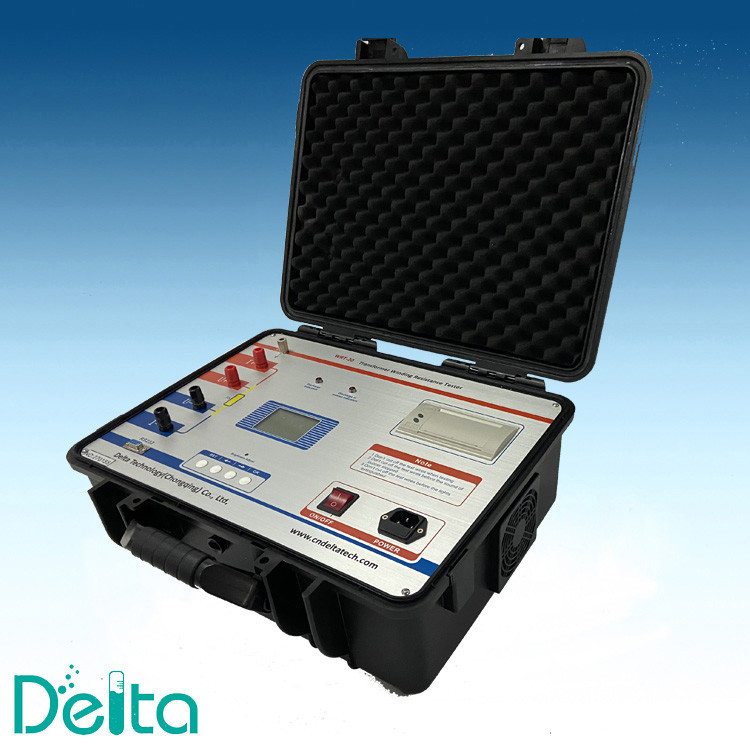

WRT Transformer Winding Resistance Tester Real Picture:
