Digital Transformer Winding DC Low Resistance Ohmmeter 5A 10A 20A 100A
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | WRT |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | Easy Operation 2A to 100A Transformer Micro Ohmmeter packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Digital Transformer Winding DC Low Resistance Ohmmeter 5A 10A 20A 100A | Display Type | Digital Only |
|---|---|---|---|
| Feature | Wrt Series Fast Test Transformer DC Resistance Tester ，suitable For Large Scale Transformer Above240MVA In Temperature Rising Tests | Other Name | Winding Resistance Tester, DC Resistance Tester |
| Test Current | 1A, 2A, 5A, 10A, 20A, 40A, 50A, 100A | Voltage Output | 20V |
| Specification | 57*45*33cm | Warranty | One Year |
| Packing Weight | 20kg |
Product Description
Digital Transformer Winding DC Low Resistance Ohmmeter
Introduction:
WRT Transformer Winding DC Low Resistance Ohmmeter is a high precision new generation product that can replace DC Wheatstone Bridge and double-arm Bridge.
It adopts the advanced starting power constant current source technology, uses four digit and half LCD display value and three digit and half LCD displays the ambient temperature or test current value, it overcomes the shortcoming that the LED display ambient value reading of other similar product is not convenient to read under the sun, at the same time it has the automatic arc extinguishing function.
It is an ideal equipment for measuring transformer winding and large power output inductor equipment.
Features:
-
WRT Transformer Winding DC Low Resistance Ohmmeter is suitable for large-scale transformer above240MVA in temperature rising tests.
-
840MVA transformer low-voltage direct-resistance tester completed within 2 minutes and the data is stable and accurate.
-
Dual-channel shows the measurement data at the same time.
-
Each interval of 60 seconds automatically print data.
-
Equipped with temperature conversion software, curve waveforms.
Parameters:
| Item | WRT-2 | WRT-10 | WRT-20 | WRT-40 | WRT-100 | WRT-20S |
| Test current | 2A | 10A | 20A | 40A | 25A,50A, 100A | Single phase:1A,5A,10A,20A, 40A Three phase: 1A, 5A, 10A, 20A |
| Measuring range | 1μΩ~ 4.5kohm | 1μΩ~ 20kohm | 1μΩ~ 10kohm | 1μΩ~ 10kohm | 50μΩ-200mΩ(100A)
100μΩ-400 mΩ(50A)
200μΩ-800 mΩ(25A) | Single phase: 10mΩ～20Ω(1A) 1 mΩ～4Ω(5A) 1 mΩ～2Ω(10A) 1 mΩ～1Ω(20A) 1 mΩ～0.5Ω(40A)
Three-phase: 10 mΩ～6Ω (1A,each phase) 1 mΩ～1Ω (5A,each phase ) 1 mΩ～0.6Ω (10A,each phase ) 1 mΩ～0.3Ω (20A,each phase ) |
| Resolution | 1μΩ | |||||
| Max. Error | 0.2%RDG+2D | |||||
| Voltage output | 20V | |||||
| Resolution | 1μΩ | |||||
| Power supply | AC220V±10%% 50Hz/60Hz | |||||
| Working environment | -10℃-+40℃ RH≤85% | |||||

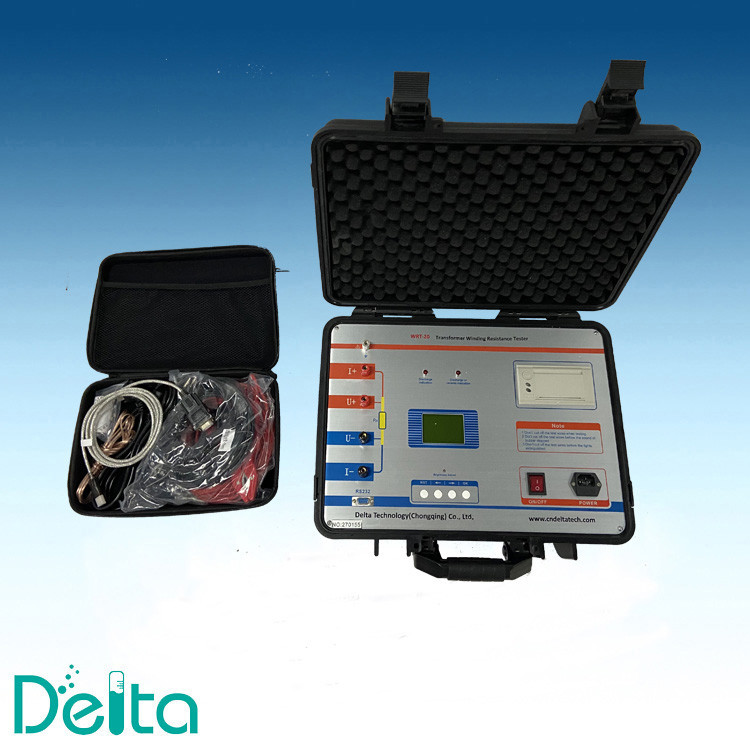

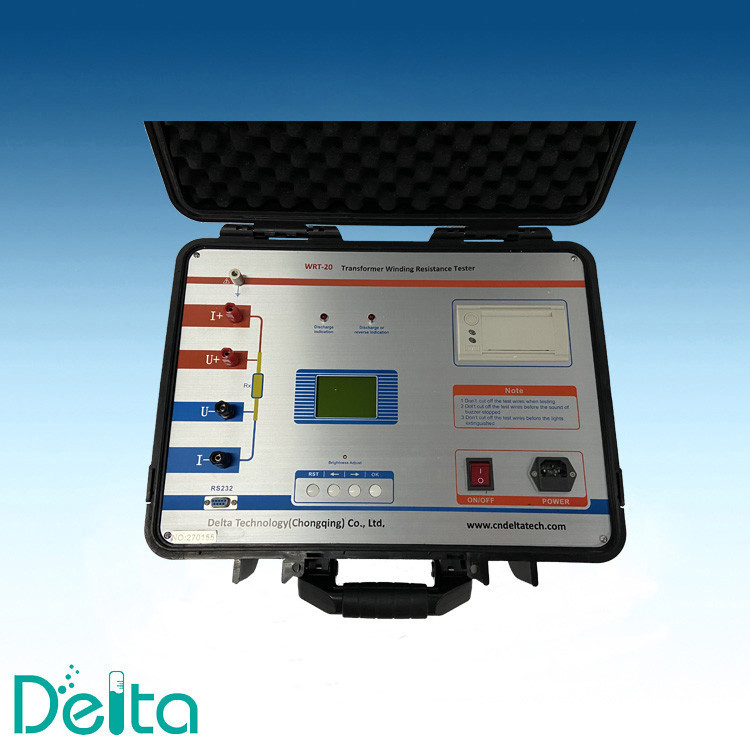

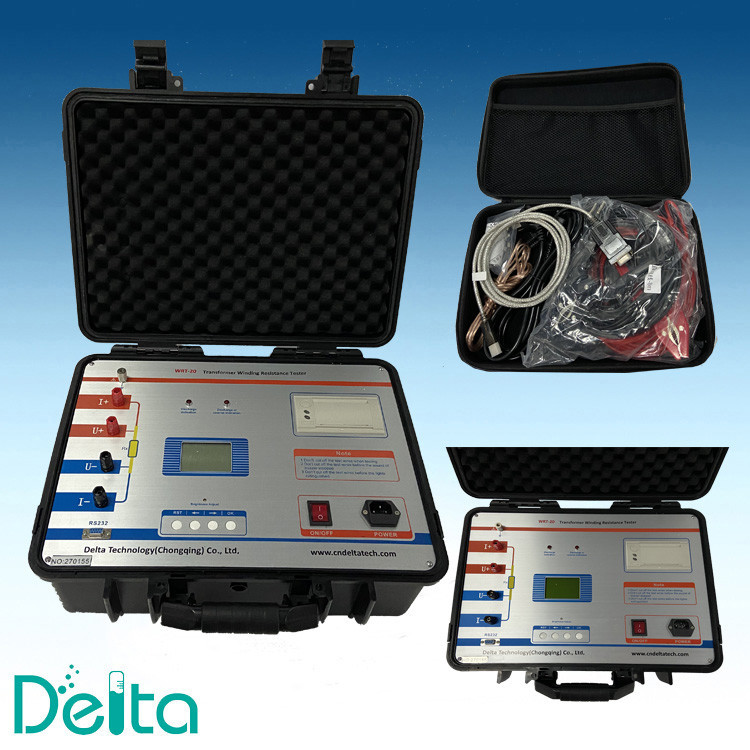

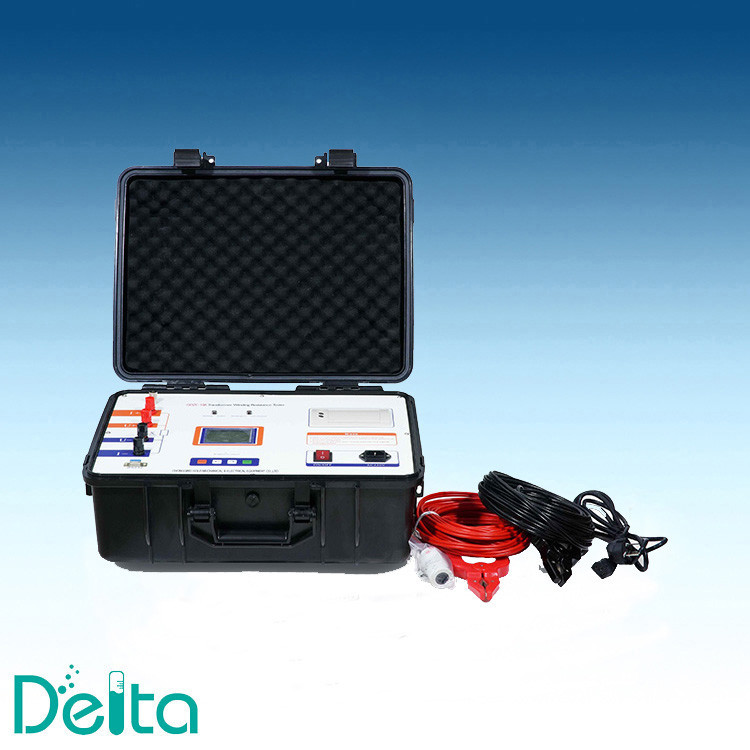

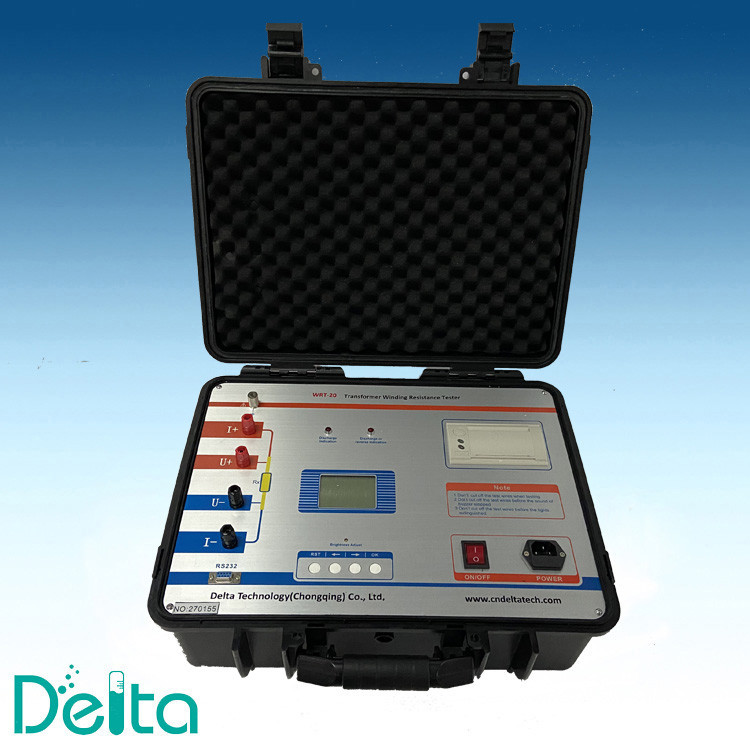

WRT Transformer Winding DC Low Resistance Ohmmeter Real Picture:
