TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing

  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
  • TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number TTR-Z
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details TTR-Z Transformer Turns Ratio Test packed in veneer case
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Z Type Transformer Turns Ratio Test Kit Item Name TTR-Z Transformer Turns Ratio Test Kit For Z Type Transformer Testing
Description TTR-Z Transformer Turns Ratio Test Kit Functions Test Parameters Of Z Type Transformer
Application Field Electrical Industry, Transformer Manufacturer Weight 8kg
Specification 400mm*350mm*200 Mm, Payment Term 30% As Deposit, The Balance Before Delivery
Reference Standards EC76-1 And IEC60044
Leave a Message
Product Description

TTR-Z Automatic Z Type Transformer Turns Ratio Test Set

Introduction:

TTR-Z Transformer Turns Ratio Test Kit is specially designed for three-phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.

TTR-Z Transformer Turns Ratio Test Kit has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.

Functions:

TTR-Z Automatic Z Type Transformer Turns Ratio Test Set can be used to measure transformers which connected in Z type, and also transformer whose zero-load current is relatively high.

With two output voltages as optional.

With wide testing range and the highest transformation ratio may reach 10000.

Automatically calculate tap position.

Rapid test speed, about only 18 seconds for three-phase.

Hih repeatability.

It can save 99 groups of datas.

Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.

With transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.

Parameters:



tem Name TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing
Ratio testing range 1~10000
Group testing range 1~12
Accuracy 1~1000, 0.2
1000~10000 ,0.5
Power supply AC230V ±10%, 50HZ
Working environment Temperature: -20ºC~40ºC, Relative humidity: <85%
Dimension 325mm*278mm*188mm
Net Weight

7Kg

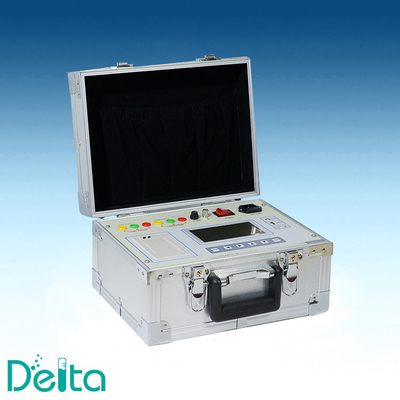

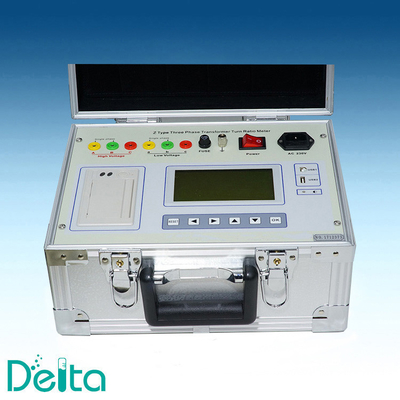

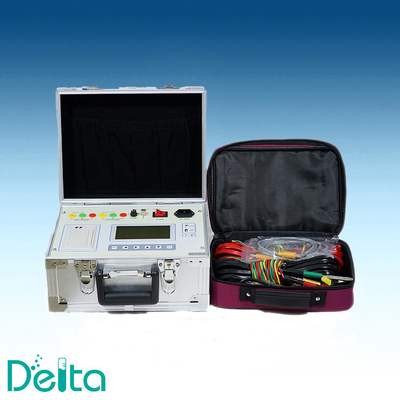

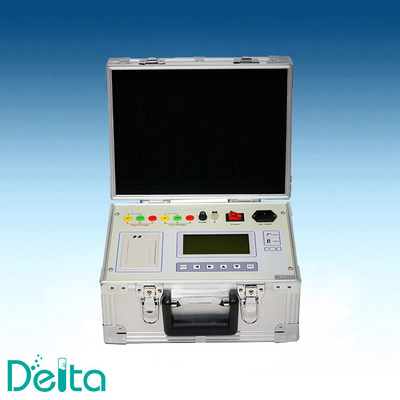

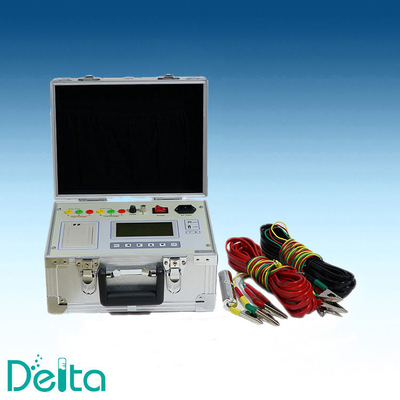

TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing​ SetReal Picture:

TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing 0TTR-Z Transformer Turns Ratio Test Kit for Z Type Transformer Testing 1
