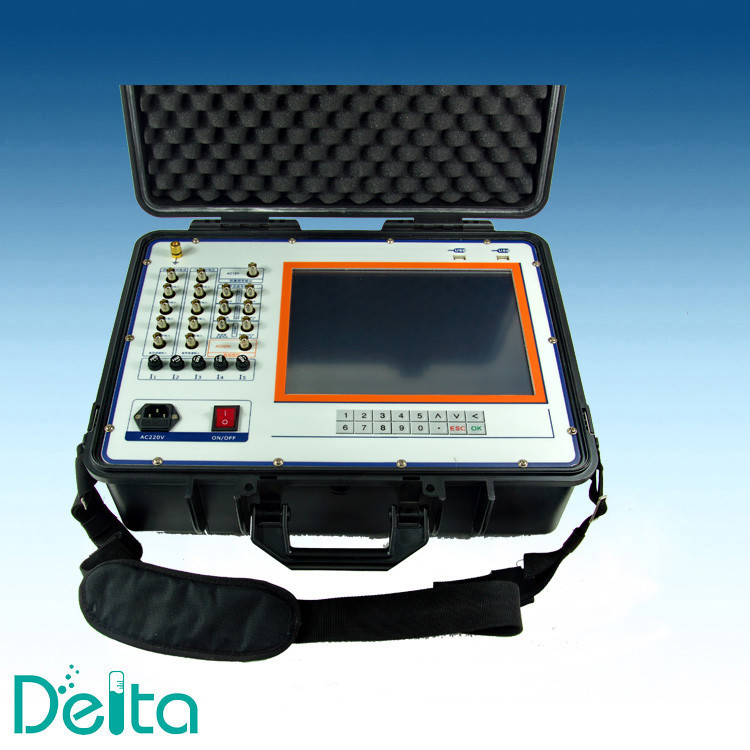

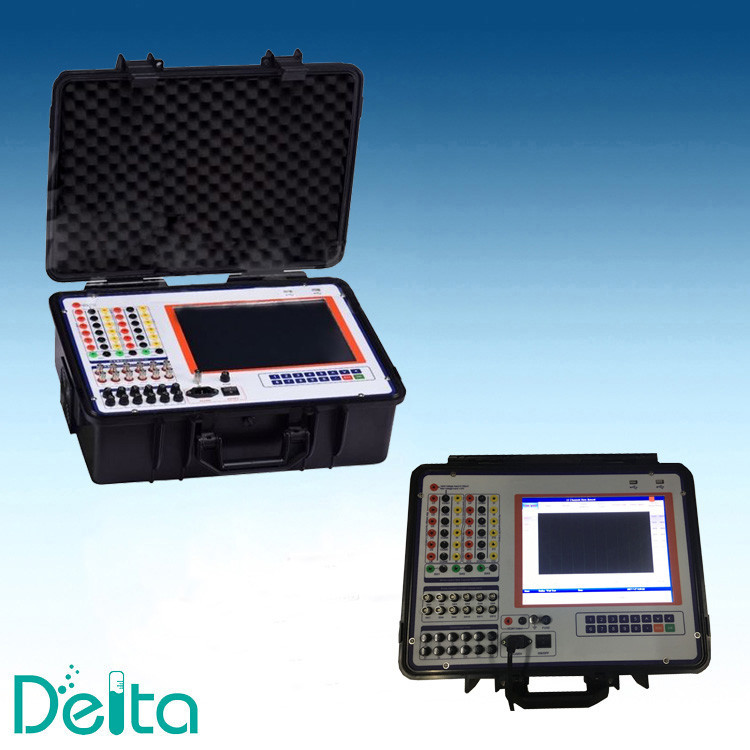

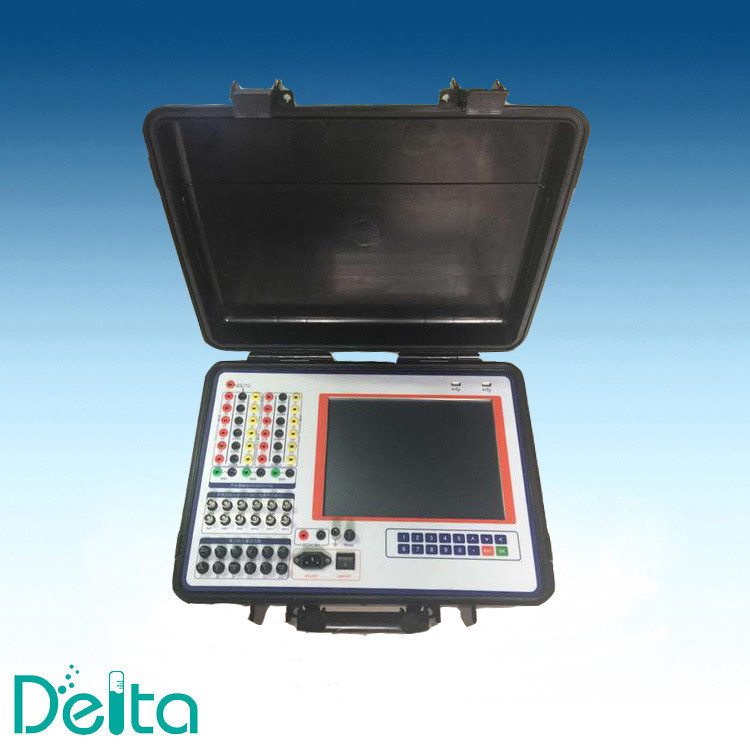

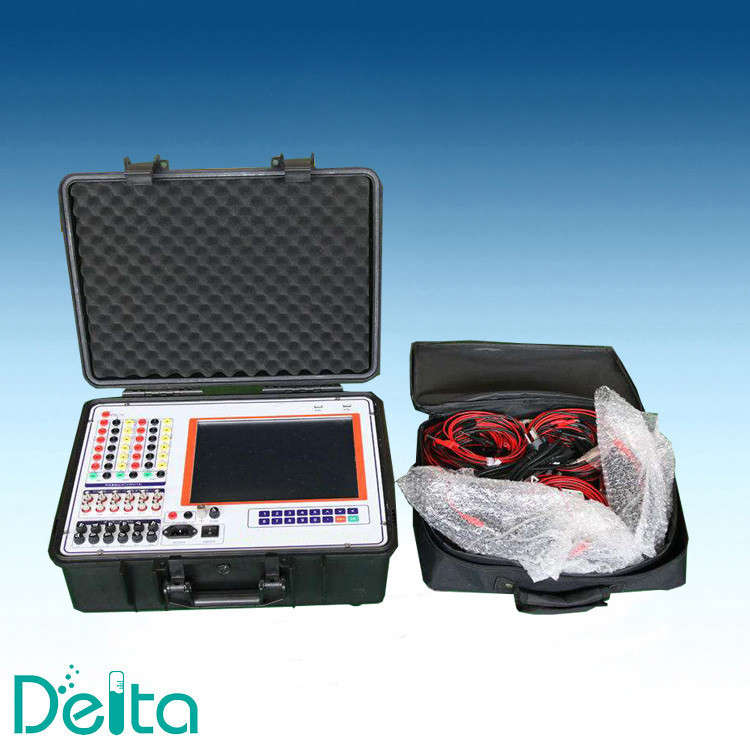

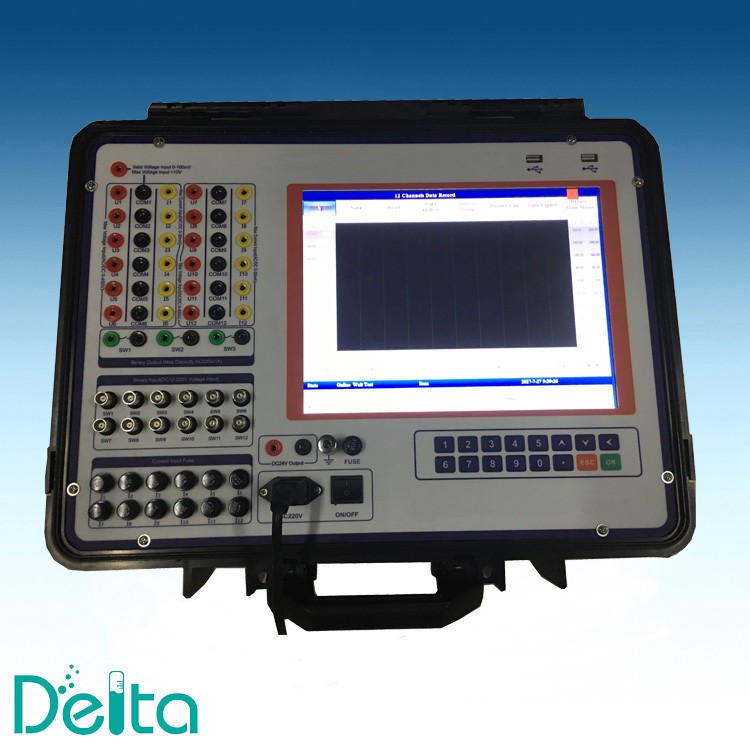

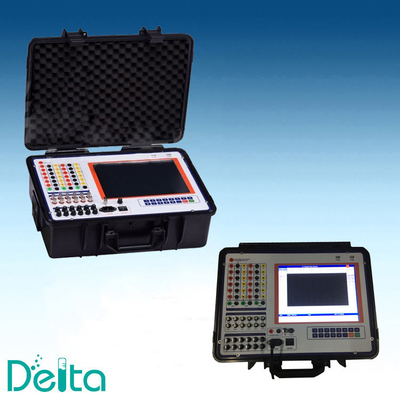

Sr Portable Universal Data Signal Logger for Generator Excitation Testing

  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
  • Sr Portable Universal Data Signal Logger for Generator Excitation Testing
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number SR
Minimum Order Quantity 1 set Transformer Winding Deformation Tester
Price USD1.0
Packaging Details r Packed in veneer case
Delivery Time 10days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Sr Portable Universal Data Signal Logger For Generator Excitation Testingl Functions Automatic Digital Display Waveform Recorder
Applicable Transforme EXW, Fob, CNF, CIF, DDU, Etc. Test Standards IEC60076-18
Test Range Test Range Sweep Mode Linear, Section
Display Through The LCD Touch Screen Size 448mm*260mm*150mm
Weight <10kg Warranty 1 Year
Leave a Message
Product Description

Sr Portable Universal Data Signal Logger for Generator Excitation Testing

Introduction:

Sr Logger for Generator Excitation Testing​ Data compress, signal statistics and analysis, curve picture making tools, frequency spectrum tools, curve math tools, harmonic analysis tools, RMS calculation, Power calculation, three phase signal analysis tool, vector analysis tools.

R Signal Recording Harmonic Tool is designed for power signal recording.

Sr Logger for Generator Excitation Testing​ power generator test items are integrated at the tester.

Sr Logger for Generator Excitation Testing​  Signal Recording Harmonic Tool can do following tests for motor (power generator):
No-load test, Short circuit test, Motor excitation step response test, Motor excitatory de-excitation test, Motor load rejection test, Grid synchronous connection test, and also on.

Specifications:



. Item Name Sr Logger for Generator Excitation Testing​
1 Analog signal sample channels 12
2 Optional ranges -450V~450V,-100V~100V,~10V~10V,-20mA~20mA, -100mV~100mV(only 1 channel)
3 Sample error -450V~450V: error<0.5V
-100V~100V: error <0.2V
-10V~10V: error <0.01V
-20mA~20mA: error <0.02mA
-100mV~100mV: error<0.5mV
　 Input resistances for different channels -10V~10V: 820K
-200V~200V: 820K
-400V~400V: 820K
-20mA~20mA: 820K
-100mV~100mV: 10M
4 Binary signal input interface 12
5 Binary signal voltage ranges DC 12~220V
6 Power supply AC220V±10%
7 Power frequency 45Hz-65Hz
8 Power consumption ≤60w
9 Working environment -10~50ºC, humidity ≤85%RH
10 Dimension 448mm*260mm*150 mm
11 Weight <10kg



Sr Logger for Generator Excitation Testing​  SFRA:

Sr Portable Universal Data Signal Logger for Generator Excitation Testing 0Sr Portable Universal Data Signal Logger for Generator Excitation Testing 1
