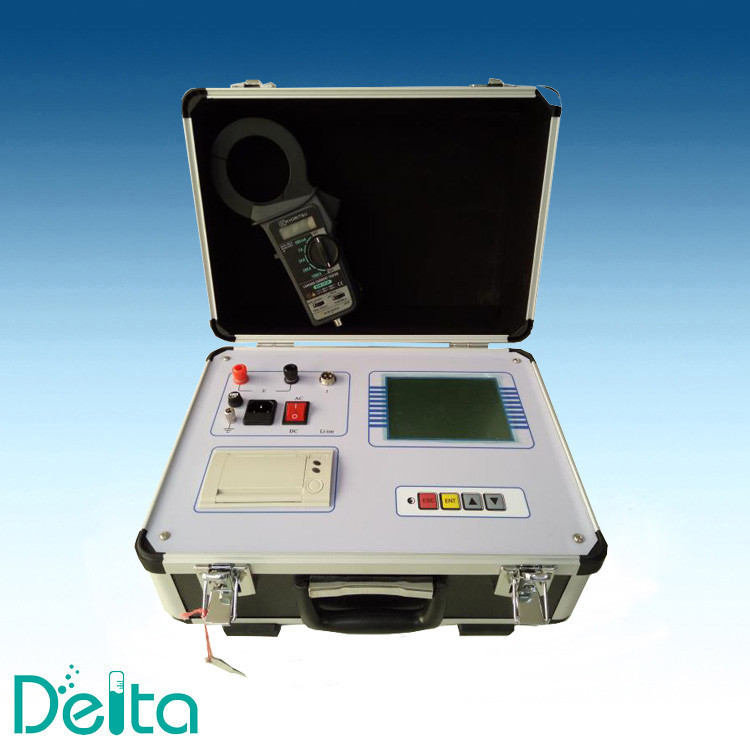

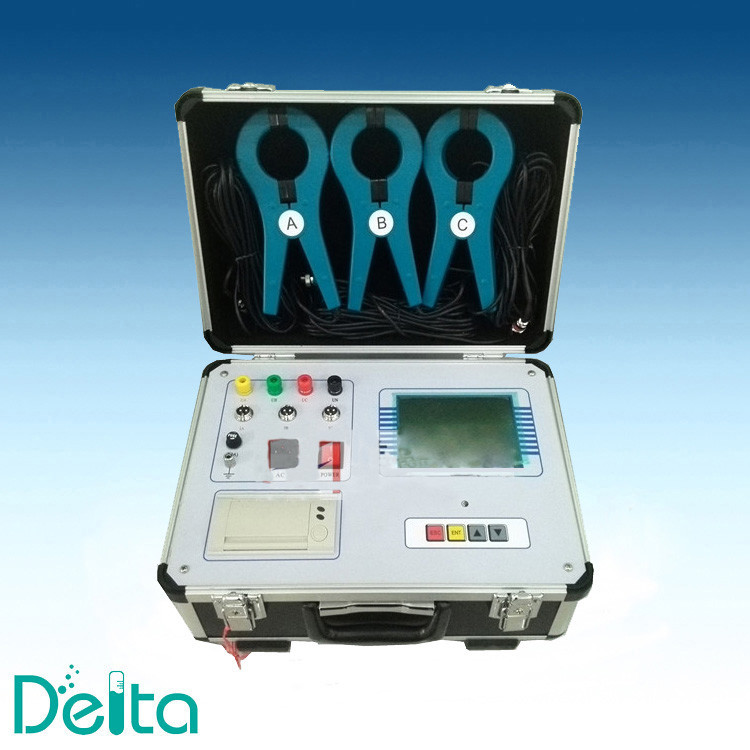

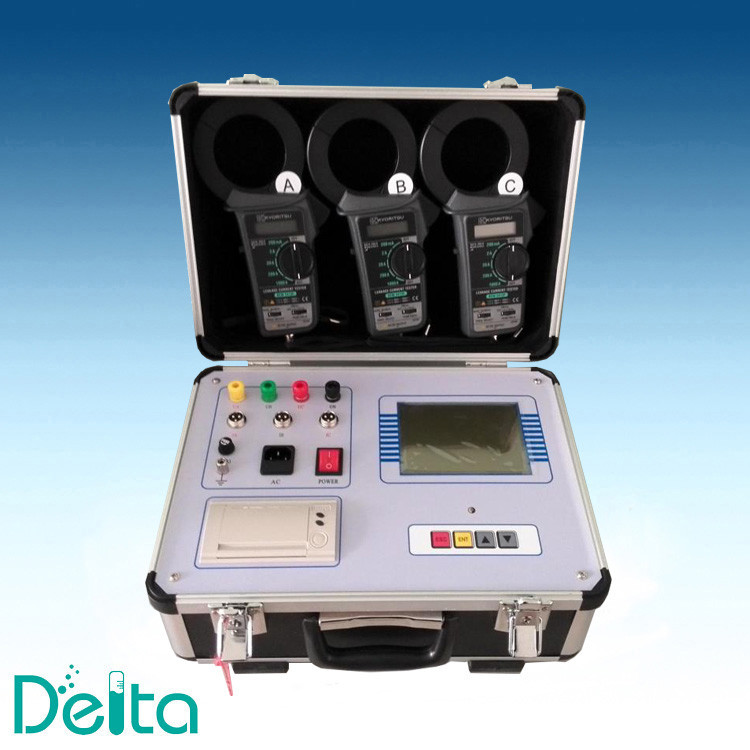

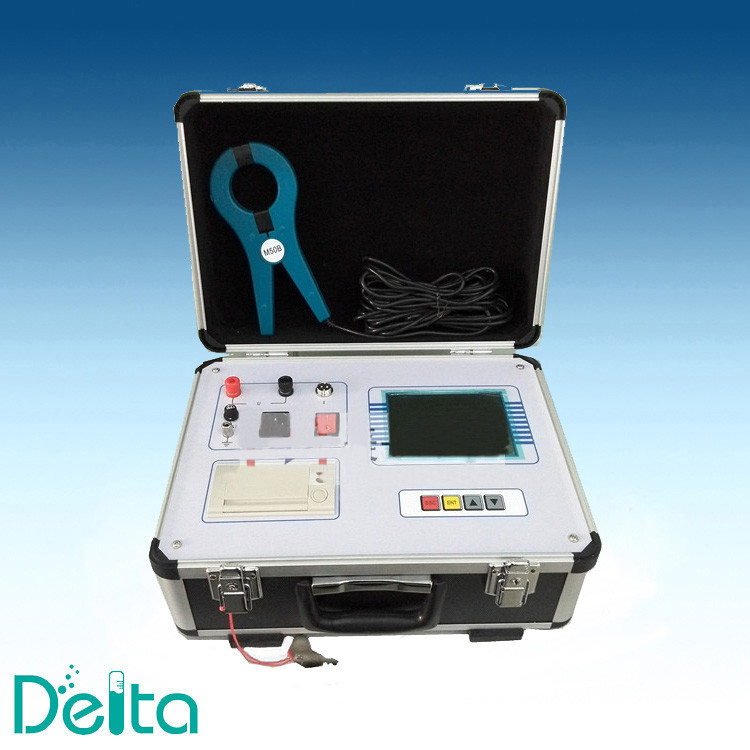

DRDG Three Phase Automatic Capacitance and Inductance Tester

  • DRDG Three Phase Automatic Capacitance and Inductance Tester
  • DRDG Three Phase Automatic Capacitance and Inductance Tester
  • DRDG Three Phase Automatic Capacitance and Inductance Tester
  • DRDG Three Phase Automatic Capacitance and Inductance Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number DRDG
Minimum Order Quantity 1 set Sweep Frequency Response Analyzer SFRA
Price USD1.0
Packaging Details Packed in Veneer Case
Delivery Time 10 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description DRDG Three Phase Automatic Capacitance And Inductance Tester Functions Three Phase, Automatic, Digital Display..
Applicable Transforme Capacitance, Current, Inductance, Resistance.. Test Standards IEC60076-18
Test Range (-100dB) - (+20dB) Sweep Mode Linear, Section
Type Universal Testing Machine Size 400mm*320mm*220mm
Weight 8kg Warranty 1 Year
Leave a Message
Product Description

DRDG Drdg Three Phase Automatic Capacitance and Inductance Tester

Introduction:

DRDG Capacitance and Inductance Tester is specially designed to solve the following problems:
1. Need disassemble the wire during the field test, which with large workload and easy to broke the reactor.
2. This device is small in workload, easy and convenient, stable performance, high precision, high fault detection rate.
3. Test the inductance of reactor.

DRDG Capacitance and Inductance Tester adopts a bridge circuit structure, and the standard capacitor and the measured capacitor are used as the two arms of the bridge circuit. When measuring the capacitance value of a capacitor, the test voltage is applied to both the standard capacitor and the tested capacitor, and the sensor simultaneously collects the current signal flowing through the standard capacitor and the tested capacitor and processes it to obtain the capacitance value of the tested capacitor.



Product Parameters:



No. Item Name DRDG Capacitance and Inductance Tester
1 Capacitance measurement Capacitance range 0.01μF-3,300μF
Capacity range 5-20,000kvar
Accuracy ±1.0%
Resolution 0.001μF
2 Current measurement Measurement range 0~20A
Accuracy ±3.0%
Resolution 0.01A
3 Inductance measurement Measurement range Small inductance method: 1mH-5Mh;
Large inductance method: 5Mh-50H
Inductive reactance measurement range 50mΩ~20KΩ
Accuracy ±3.0%
Resolution 0.01Mh
4 Resistance measurement Measurement range Small inductance method: 50mohm-1ohm;
Large inductance method: 1ohm-20Kohm
Accuracy 0.01ohm
5 Power supply 220V±10%, 50Hz
Rated output 2V/20V/500VA
6 Working environment 0ºC ~ +40ºC,≤90%RH
7 Dimension 400mm*320mm*220mm
8 Weight 8kg



DRDG Capacitance and Inductance Tester SFRA:

DRDG Three Phase Automatic Capacitance and Inductance Tester 0DRDG Three Phase Automatic Capacitance and Inductance Tester 1
