Sfra 10Hz to 10MHz Sweep Frequency Response Analysis Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SFRA |
| Minimum Order Quantity | 1 set Sweep Frequency Response Analyzer SFRA |
| Price | USD1.0 |
| Packaging Details | Sfra Response Analysis Equipment Packed in veneer case, about 20kg |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Sfra 10Hz To 10MHz Sweep Frequency Response Analysis Equipment | Functions | 10MHz Sweep Frequency Response Analysis Equipment, Reactor Phase Shifting Testing, Transformer Phase Shifting Testing Equipment |
|---|---|---|---|
| Applicable Transformer | Sweep Frequency Response Analysis Equipment, Reactor Phase Shifting Testing, Transformer Phase Shifting Testing Equipment Current Transformer, Voltage Transformer, CT, PT, VT | Test Standards | IEC60076-18 |
| Test Range | (-100dB) - (+20dB) | Sweep Mode | Linear, Section |
| Display | Large LCD Screen Display, Touch Screen | Size | 31cm*15cm*5cm |
| Weight | 4kg | Warranty | 1 Year |
Product Description

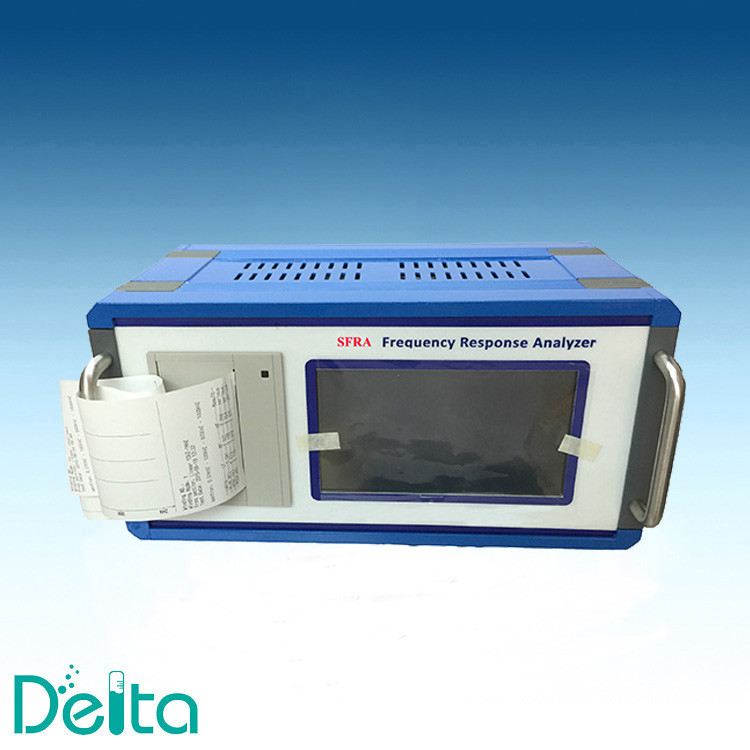

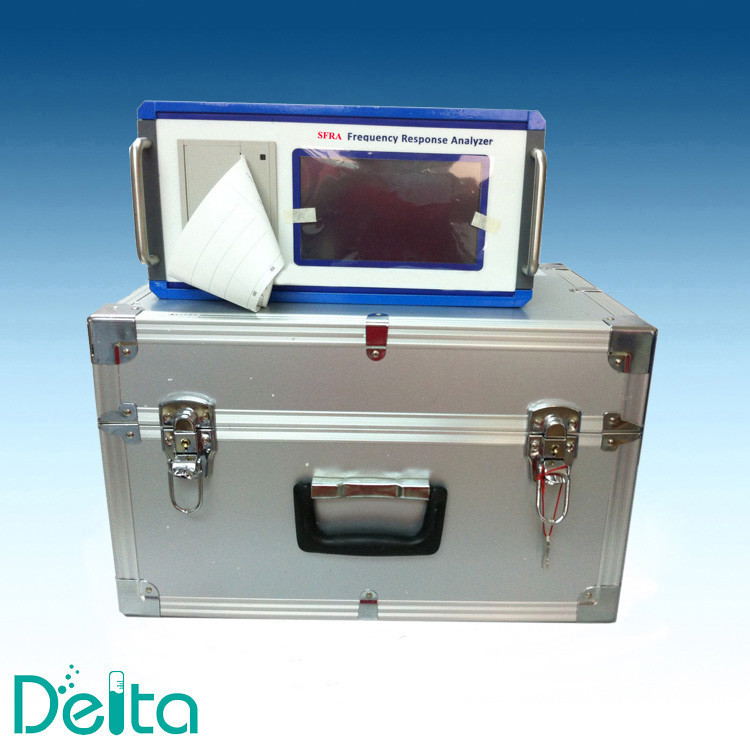

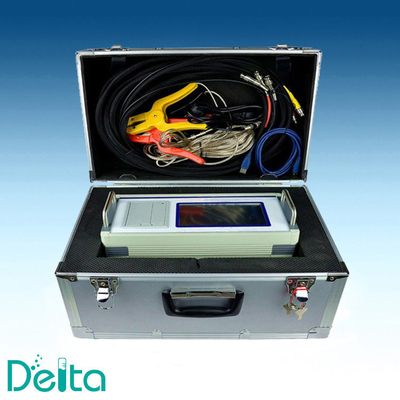

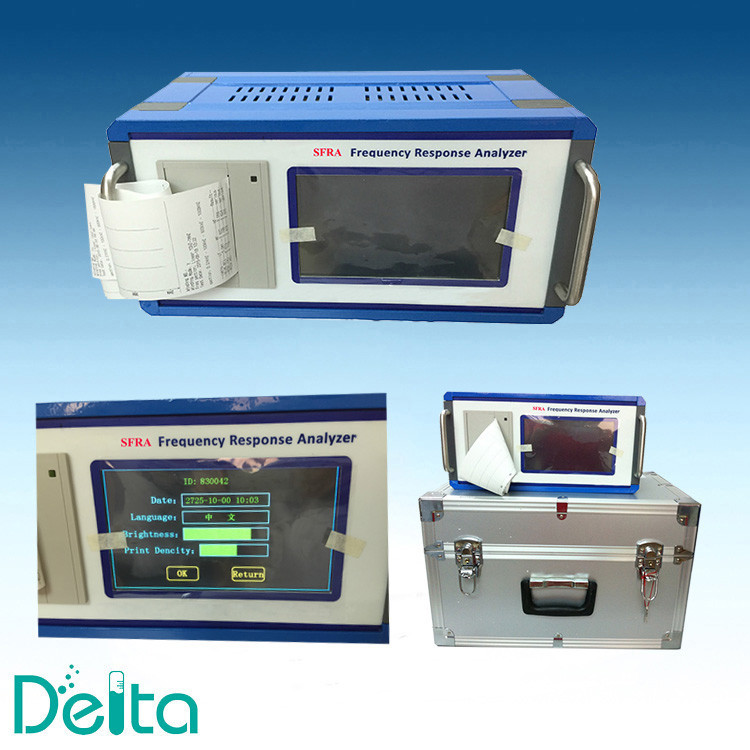

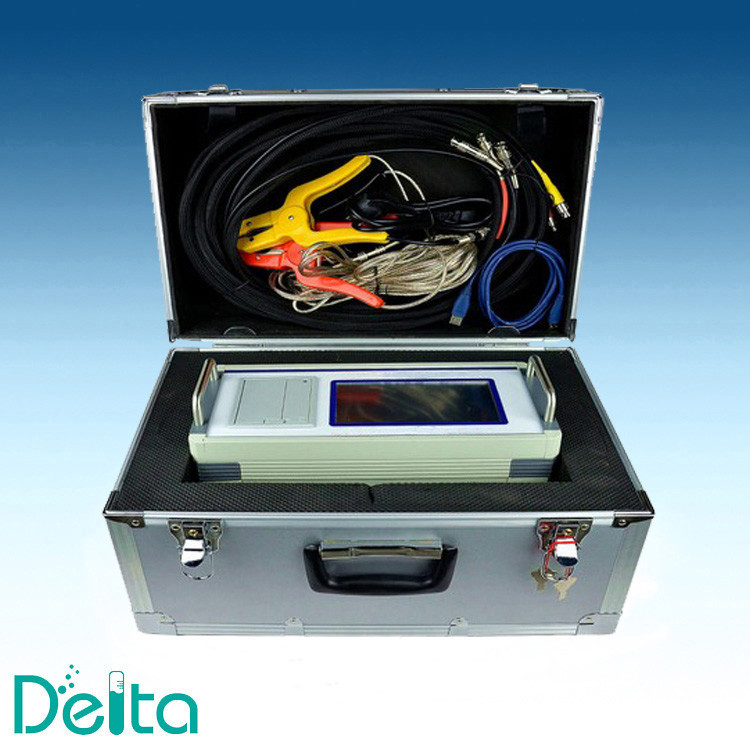

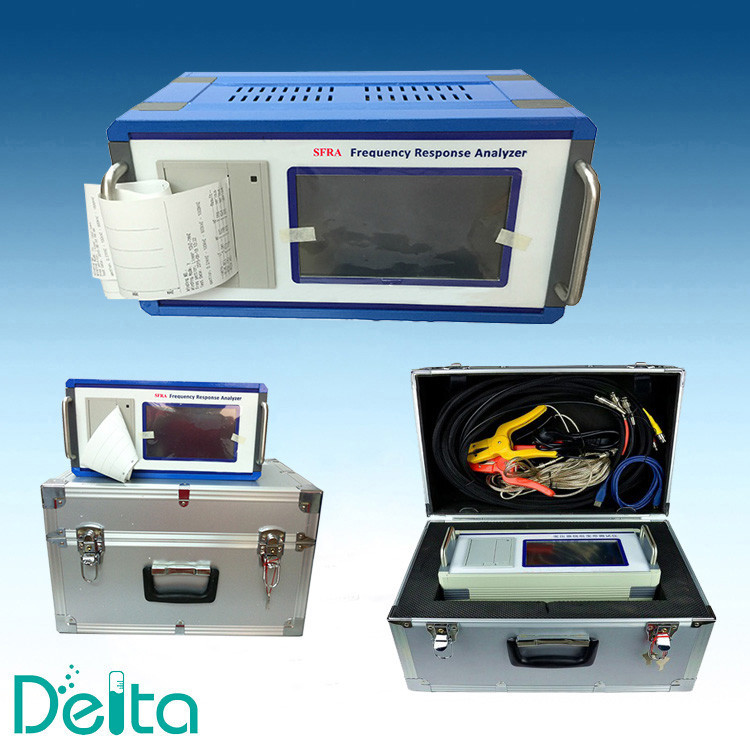

Sfra 10Hz to 10MHz Sweep Frequency Response Analysis Equipment
Introduction:
- Normally, the structure and reference of transformer is fixed after being made, therefore, the frequency response of each winding will be almost the same. However, under some special conditions, such as cut off between circles or phases during test, cut off or winding moved during running, winding moved in transportation, these conditions may change the structure of transformer , then the frequency response may be changed, we could detect the deformation according to the frequency response curve.
- Our company has designed the SFRA 10MHz Response Analysis Equipment base on the idea and the advanced technique. It could draw the frequency response curve accurately. Then we compare the curves horizontally or vertically to detect the deformation of the transformer.
- SFRA 10MHz Response Analysis Equipment is a powerful and sensitive method to evaluate the core, winding and clamping structures of power transformers, by measuring their electrical transfer functions over a wide frequency range.
Specifications:
| No. | Item Name | Sfra 10Hz to 10MHz Sweep Frequency Response Analysis Equipment |
| 1 | Linear sweep | 10HZ-1MHZ interval 0.5KHZ 2001 dots |
| 10HZ-1MHZ interval 0.25KHZ 4001 dots(PC available) | ||
| 100HZ-2MHZ interval 0.25KHZ 4001 dots (PC available) | ||
| Initial frequency, interval and scan dots can be set (PC available) | ||
| Section sweep | 10HZ-20HZ interval 1HZ 11 dots | |
| 20HZ-100HZ interval 2HZ 40 dots | ||
| 100HZ -1KHZ interval 3HZ 300 dots | ||
| 1KHZ-10KHZ interval 20KHZ 450 dots | ||
| 10KHZ –100KHZ interval 0.3KHZ 300 dots | ||
| 100KHZ – 1000KHZ interval 1KHZ 900 dots | ||
| Section sweep: (conform to IEC60076-18:2012) | 20HZ-100HZ interval 2HZ 40 dots | |
| 100HZ -1KHZ interval 2HZ 450 dots | ||
| 1KHZ-10KHZ interval 20HZ 450 dots | ||
| 10KHZ –100KHZ interval 0.2KHZ 450 dots | ||
| 100KHZ – 1000KHZ interval 2.5KHZ 360 dots | ||
| 1000KHZ – 2000KHZ interval 4KHZ 250 dots | ||
| 2 | Test range | (-100dB) - (+20dB) |
| 3 | Test accuracy | (-40dB) - (+20dB)0.2dB (-60dB) - (-40dB)0.5dB (-80dB) - (-60dB)1.0dB |
| 4 | Frequency accuracy | <0.01% |
| 5 | Signal input impedance | >1M Ω |
| 6 | Signal output impedance | 50 Ω |
| 7 | In-phase test repetition rate | 99.5% |
| 8 | Dimension | 31cm*15cm*5cm |
| 9 | Net weight | 4kg |
Features:
- Adopts advanced technical of DDS;
- Adopts high speed and advanced microprocessor;
- Adopts double channels of AD chip of 16 bits;
- With seven inch LCD touch screen;
- With build-in thermal printer;
- With PC software, with it we can operate, analyze data, upload data and generate word document;
- Can store 40 groups of data;
- You can use USB2.0 to connect with the device;
Sfra 10Hz to 10MHz Sweep Frequency Response Analysis Equipment SFRA:
