Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-I |
| Minimum Order Quantity | 1 set Insulating Oil BDV Test Kit 80kV |
| Price | USD1.0 |
| Packaging Details | Bdv-I Oil Breakdown Voltage Test Kit packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit | Functions | Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit,Insulating Oil BDV Testing |
|---|---|---|---|
| Test Voltage | Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit,0-80kV Or 0-100kV | Rate Of Voltage Rise | 2KV/s±10% |
| Test Standards | IEC60156 | Size | 420×380×410mm |
| Weight | 28KG | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
Product Description
BDV-I Hot Sale Transformer Oil Breakdown Voltage Test Kit
Introduction:
- BDV-I Oil Breakdown Voltage Test Kit is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
- BDV-I Oil Breakdown Voltage Test Kit is very easy for customers to measure the breakdown voltage of all kinds of oil by it.You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.
Functions:
- Breakdown test of user-defined
- Proof test
- Calibration interface for customers
- Unloading data to PC and making word report automatically
- Result print
Parameters:
| No. | Item Name | Bdv-I Hot Sale Transformer Oil Breakdown Voltage Test Kit |
| 1 | Output voltage | AC 0~80KV/AC 0~100KV |
| 2 | Rate of voltage rise | 2KV/s±10% |
| 3 | Measuring precision | 3%RDG+0.3%FS |
| 4 | Test times setting | 1~9 |
| 5 | Mixing time setting | 0~99 second |
| 6 | Waiting time setting | 0-9 minute 59second |
| 7 | Maximum storage capacity | 100 groups of test data |
| 8 | Test standards | IEC60156 |
| 9 | Display | 256*128 LCD |
| 10 | Rated power supply | AC 220V±10% 50Hz/60Hz |
| 11 | Environment temperatures | 0-50°C |
| 12 | Relative humidity | ≤80%RH |
| 13 | Size | 420×380×410mm3 |
| 14 | Weight | 28kg |

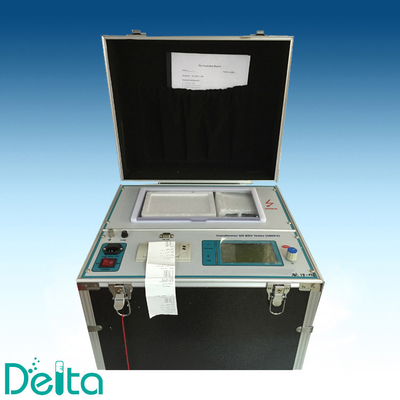

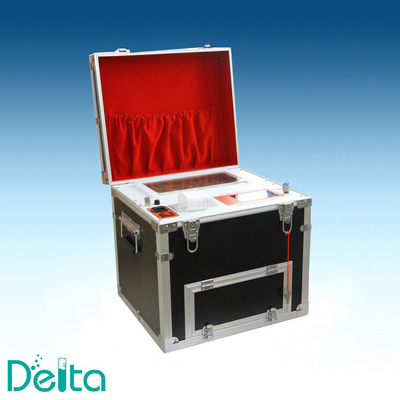

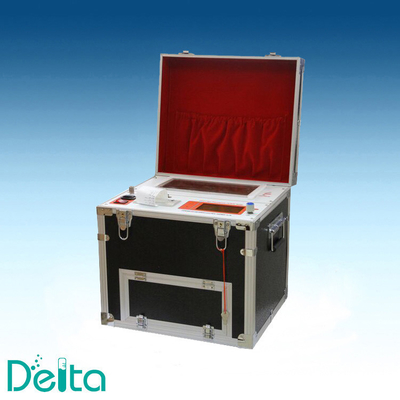

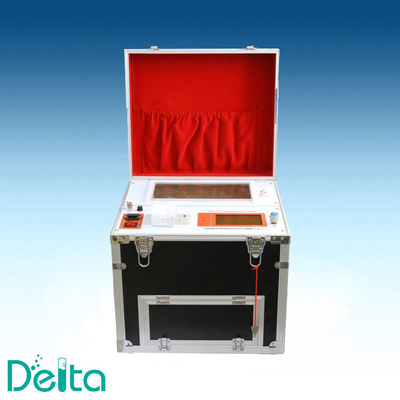

Real Picture:
