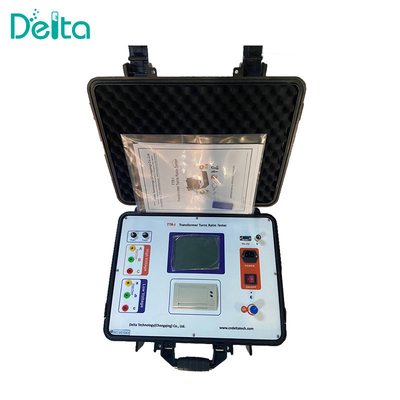

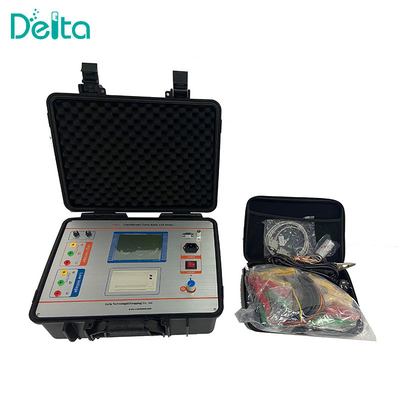

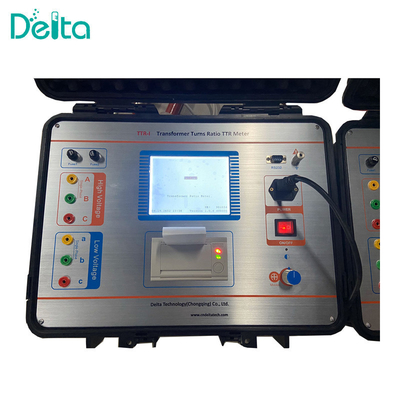

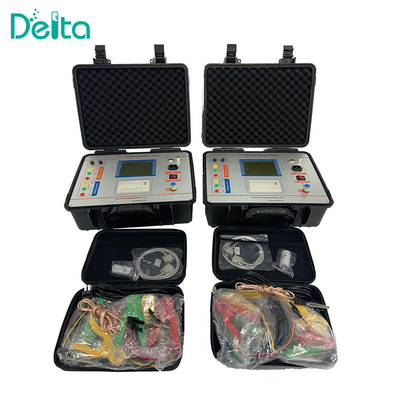

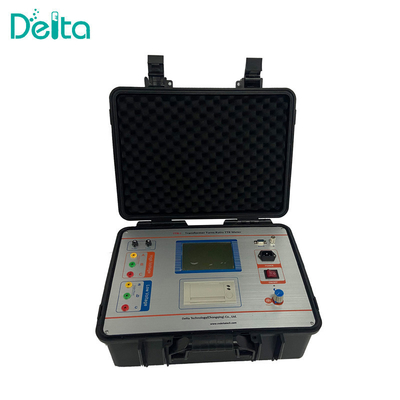

TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing

  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
  • TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number TTR-I
Minimum Order Quantity 1 set Transformer Turns Ratio TTR Meter
Price USD1.0
Packaging Details TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name TTR-I Automatic 3 Phase Transformer Turns Ratio TTR Meter For Single Phase Transformer Testing Functions For Single Phase Transformer Testing
Reference Standards IEC76-1 And IEC60044 Ratio Measurement Range 1-10000
Group Measurement 1-12 Size 400mm*350mm*200 Mm
Weight 7kg Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Applicable Transformer Single Phase And Three Phase Transformers
Leave a Message
Product Description

TTR-I Transformer Turns Ratio Meter

Introduction:

  • TTR-I Transformer Turns Ratio Meter is designed according IEC76-1 and IEC60044.

  • TTR-I Transformer Turns Ratio Meter can be applied to test the turns ratio and group vector of single or three phase transformer.

  • The connection group of three phase transformer also can be calculated with the ratio.

  • All parameters can be measured in one test for three phase transformer.



Functions:

  • Turns ratio testing: single phase power transformer, three phase power transformer, CT, PT;

  • Phase angle testing:single phase power transformer, three phase power transformer, CT,PT;

  • Polarity testing: single phase power transformer, three phase power transformer, CT, PT;

  • Vector group testing: three phase power transformer;





Features:

  • 1200°C Split-Hinge Tube Furnaces for horizontal use.

  • Heating element modules for superior radial and linear temperature uniformity and fast heat up and cool down.

  • Long-life, energy-efficient elements require little or no maintenance.

  • Mode conversion switch (Test method of IEC 60754-1&2 could be selected).

  • Alarm Temperature Controller: Temp controller to protect overheating of furnace.

  • Quartz work tube and sample lading assembly.

  • pH and conductivity measuring instruments with digital display and electrodes Stirrer.

  • Mass flow meter control the flow rate of air and digital display.

  • Activated Charcoal (air filtering): Filter for filtering the supplied air (activated charcoal).

  • Silica Gel (air drying): Device for drying the supplied air.

  • 100 ceramic sample boats.



Parameters:

No. Item Name TTR-I Transformer Turns Ratio Meter
1 Ratio measurement range 1-10000
2 Group measurement 1-12
3 Phase measurement error 1 degree
4 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
5 Test voltage AC 0~80V continuously, frequency 50Hz
6 Power supply AC220V ± 10%, 50Hz/60Hz
7 Environment temperature 0-50°C
8 Humidity ≤85%RH
9 Size 400mm*350mm*200 mm
10 Weight 7kg
11 Length of test cables 8 meters



Real Picture:
