BDV-I Economic Type IEC60156 100kV Insulating Oil BDV Test Kit 80kV

  • BDV-I Economic Type IEC60156 100kV Insulating Oil BDV Test Kit 80kV
Place of Origin China
Certification ISO9001
Model Number BDV-I
Minimum Order Quantity 1 set Insulating Oil BDV Test Kit 80kV
Price USD1.0
Packaging Details Insulating Oil BDV Test Kit 80kV packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name BDV-I Economic Type IEC60156 100kV Insulating Oil BDV Test Kit 80kV Functions Insulating Oil BDV Testing
Test Voltage 0-80kV Or 0-100kV Rate Of Voltage Rise 2KV/s±10%
Test Standards IEC60156 Size 420×380×410mm
Weight 28KG Power Supply AC220V ± 10%, 50Hz/60Hz
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

BDV-I 100kV 80kV Insulating Oil BDV Test Kit

Introduction:

  • BDV-I 80kV 100kV Insulating Oil BDV Test Kit is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
  • BDV-I 80kV 100kV Insulating Oil BDV Test Kit is very easy for customers to measure the breakdown voltage of all kinds of oil by it.You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.





Functions:

  • Breakdown test of user-defined
  • Proof test
  • Calibration interface for customers
  • Unloading data to PC and making word report automatically
  • Result print





Parameters:

No. Item Name BDV-I 80kV 100kV Insulating Oil BDV Test Kit

1

Output voltage

AC 0~80KV/AC 0~100KV

2

Rate of voltage rise

2KV/s±10%

3

Measuring precision

3%RDG+0.3%FS

4

Test times setting

1~9

5

Mixing time setting

0~99 second

6

Waiting time setting

0-9 minute 59second

7

Maximum storage capacity

100 groups of test data

8

Test standards

IEC60156

9

Display

256*128 LCD

10

Rated power supply

AC 220V±10% 50Hz/60Hz

11

Environment temperatures

0-50°C

12

Relative humidity

≤80%RH

13

Size

420×380×410mm3

14

Weight

28kg

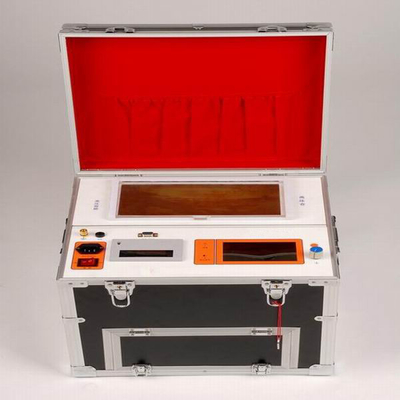

Real Picture:

BDV-I Economic Type IEC60156 100kV Insulating Oil BDV Test Kit 80kV 0
