WRT Portable 5A 10A Power Transformer DC Winding Resistance Tester
| Place of Origin | China |
|---|---|
| Certification | ISO9001 |
| Model Number | WRT |
| Minimum Order Quantity | 1 set Transformer DC Winding Resistance Tester |
| Price | USD1.0 |
| Packaging Details | Transformer DC Winding Resistance Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | WRT Portable 5A 10A Power Transformer DC Winding Resistance Tester | Functions | For Transformer DC Winding Resistance Testing |
|---|---|---|---|
| Feature | Suitable For Large Scale Transformer Above240MVA In Temperature Rising Tests | Applicable Transformer | Single Phase And Three Phase Transformers |
| Test Current | 1A, 2A, 5A, 10A, 20A, 40A, 50A, 100A | Voltage Output | 20V |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
WRT Portable 5A 10A Power Transformer DC Winding Resistance Tester
Introduction:
-
WRT Transformer DC Winding Resistance Tester is used for testing, installing and exchanging the semi-finished or finished transformer.
-
WRT Transformer DC Winding Resistance Tester is also a necessity for power department to do preventive trials.
-
WRT Transformer Winding Resistance Tester can effectively help you to find disfigurements in the manufacturing of transformer, such as the winding choosing, welding, loose joints, missing shares and hidden danger in the running.
-
In order to meet the need of fast measurement of DC resistance, our company makes use of our technological advantage to develop the Micro Ohmmeter;
Features:
-
WRT Transformer Winding Resistance Tester is suitable for large-scale transformer above240MVA in temperature rising tests.
-
840MVA transformer low-voltage direct-resistance tester completed within 2 minutes and the data is stable and accurate.
-
Dual-channel shows the measurement data at the same time.
-
Each interval of 60 seconds automatically print data.
-
Equipped with temperature conversion software, curve waveforms.
Parameters:
| Item | WRT-2 | WRT-10 | WRT-20 | WRT-40 | WRT-100 | WRT-20S |
| Test current | 2A | 10A | 20A | 40A | 25A,50A, 100A | Single phase:1A,5A,10A,20A, 40A Three phase: 1A, 5A, 10A, 20A |
| Measuring range | 1μΩ~ 4.5kohm | 1μΩ~ 20kohm | 1μΩ~ 10kohm | 1μΩ~ 10kohm | 50μΩ-200mΩ(100A)
100μΩ-400 mΩ(50A)
200μΩ-800 mΩ(25A) | Single phase: 10mΩ～20Ω(1A) 1 mΩ～4Ω(5A) 1 mΩ～2Ω(10A) 1 mΩ～1Ω(20A) 1 mΩ～0.5Ω(40A)
Three-phase: 10 mΩ～6Ω (1A,each phase) 1 mΩ～1Ω (5A,each phase ) 1 mΩ～0.6Ω (10A,each phase ) 1 mΩ～0.3Ω (20A,each phase ) |
| Resolution | 1μΩ | |||||
| Max. Error | 0.2%RDG+2D | |||||
| Voltage output | 20V | |||||
| Resolution | 1μΩ | |||||
| Power supply | AC220V±10%% 50Hz/60Hz | |||||
| Working environment | -10℃-+40℃ RH≤85% | |||||

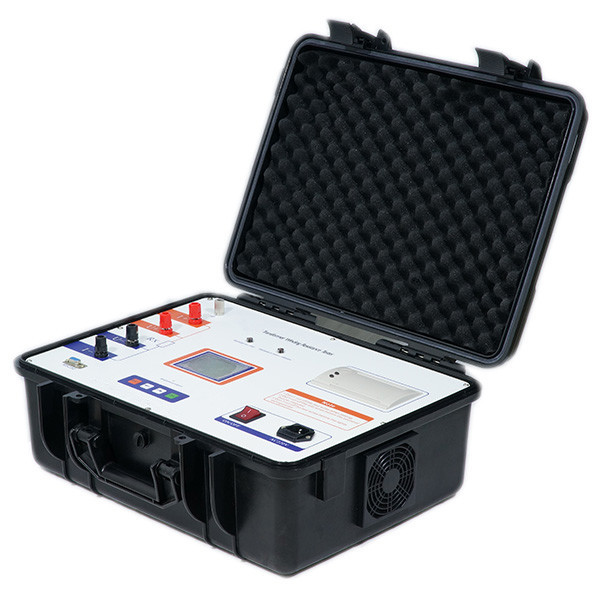

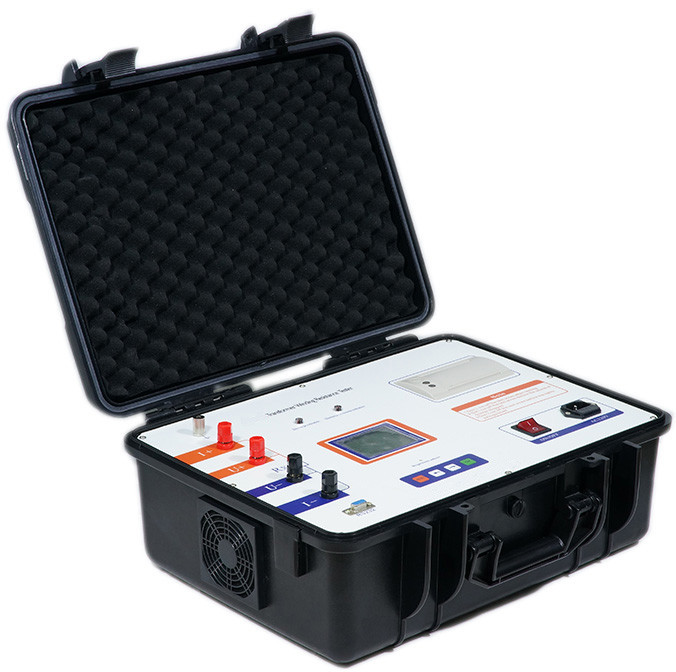

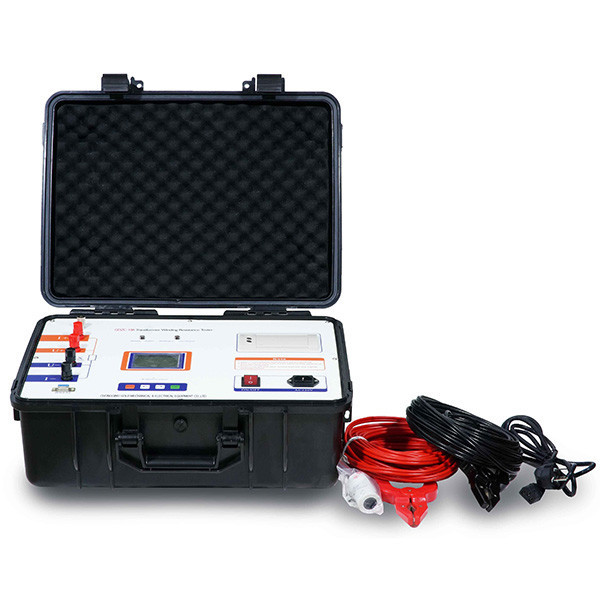

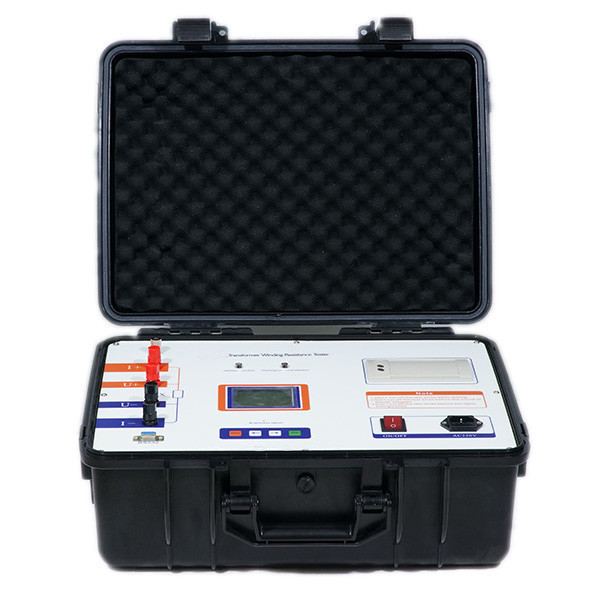

Real Picture:
