TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment

  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
  • TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number TTR-Z
Minimum Order Quantity 1 set Turns Ratio Testing Equipment
Price USD1.0
Packaging Details Turns Ratio Testing Equipment packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment Functions Test The Turns Ratio And Group Vector Of Z Type Transformer
Applicable Transformer All Kinds Of Transformers Including Z Type Transformers Reference Standards IEC76-1 And IEC60044
Ratio Measurement Range 1-10000 Group Measurement 1-12
Size 325mm×278mm×188 Mm Weight 7kg
Power Supply AC220V ± 10%, 50Hz/60Hz Warranty One Year
Service OEM Service Is Available
Leave a Message
Product Description

Special Z Type Transformer Turns Ratio Testing Equipment  --  Model TTR-Z

Introduction:

  • TTR-Z Transformer Turns Ratio Testing Equipment is specially designed for three-phase transformer in power system, especially for transformer of type Z winding and other transformers whose zero-load current is relatively high.

  • TTR-Z Transformer Turns Ratio Testing Equipment has wide testing range, fast testing speed, favorable repeatability, flexible data processing, convenient connection, complete protection, easy learning and convenient operation.





Features:

  • Applicable to transformers connected in Z type.

  • Two output voltages are optional and applicable to transformer whose zero-load current is relatively high.

  • Have wide testing range and the highest transformation ratio may reach 10000.

  • Automatically calculate tap position.

  • Fast speed, which is only 18 seconds for three-phase.

  • Favorable repeatability.

  • Automatically save 99 data at most.

  • Flexible data processing, including retrieval, print, transfer to U-disk, delete and upload to PC computer for testing.

  • Have transformer short-circuit protection and interturn short-circuit protection functions. In case of short circuit, relevant information will be displayed on the LCD screen in characters.

  • The upper computer could control the whole testing process, save data.



Parameters:

No. Item Name TTR-Z Z Type Transformer Turns Ratio Testing Equipment
1 Ratio measurement range 1-10000
2 Group measurement 1-12
3 Phase measurement error 1 degree
4 Ratio measurement error 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
5 Test voltage AC 0~80V continuously, frequency 50Hz
6 Power supply AC220V ± 10%, 50Hz/60Hz
7 Environment temperature 0-50°C
8 Humidity ≤85%RH
9 Size 325mm*278mm*188 mm
10 Weight 7kg
11 Length of test cables 8 meters



Real Picture:

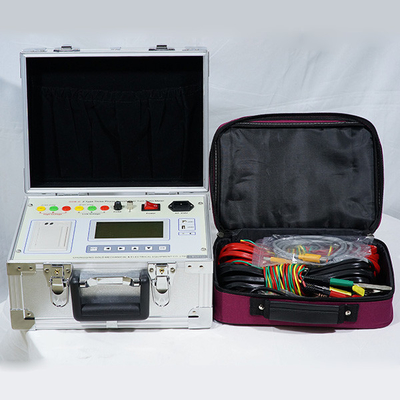

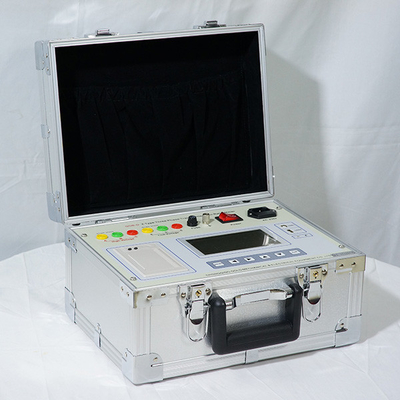

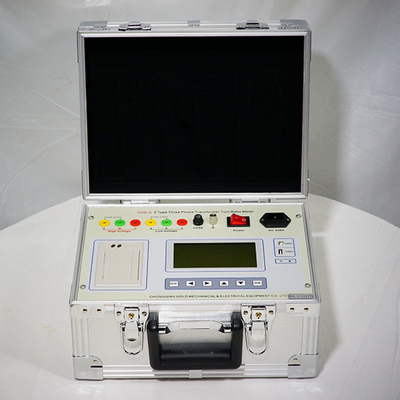

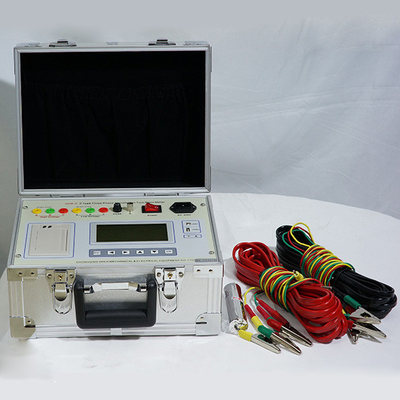

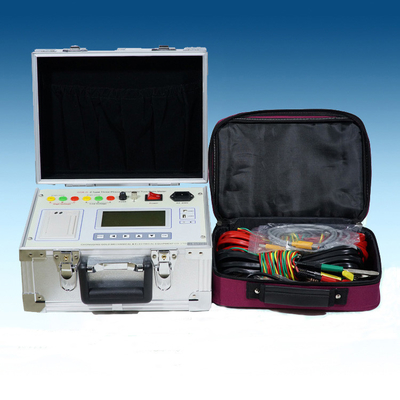

TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment 0
TTR-Z Special Z Type Transformer Turns Ratio Testing Equipment 1
