PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set

  • PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number PRT-I
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details PRT-I Single Phase Secondary Injection Test Set packed in veneer case
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set Description Low Pric Single Phase Secondary Injection Test Set
Functions Measure Parameter Of Single Phase Protection Relay Other Functions Used As A Voltage Source Alone
Packing Dimension 55*42*49cm Gross Weight 37kg
DC Voltage Output 0-350V Continuity Power Supply 220V, 50Hz
Leave a Message
Product Description

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set

Introduction:

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set is applied to test protection replay based on voltage and current operation.

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set is equipped with a fixed value output which can be used as a voltage source alone.

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set adopts digital display with intuitive reading.

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set has the characteristics of high precision, full function, stable, easy operation, light in weight. It' s a low cost, simple operation and reliable device for secondary circuit testing.



Parameters:





C voltage output 0-350V continuity Max. capacity output: 960VA
AC voltage output 0-350V continuity Max. capacity output: 400VA
DC current output 0-10A continuity Max. capacity output: 80VA
AC current output 0-10A (at Max. voltage 40V) Capacity:1000VA , continuity output time≤35s
0-100A((at Max. voltage 14V)
AC voltage circuit short connection simulation Voltage output setting≤120V Range15%~80%
DC constant voltage alternating output(can be used as operating power source of static relay) Output voltage: 24V, 48V, 110V, 220V Output current: 0.4A
Tester overload protection DC/AC voltage output circuit 5A fuse
DC constant voltage output circuit 0.5A fuse
6A fuse for tester power supply
Digital timer 0.000~9999s, error: mantissa ±2 digit

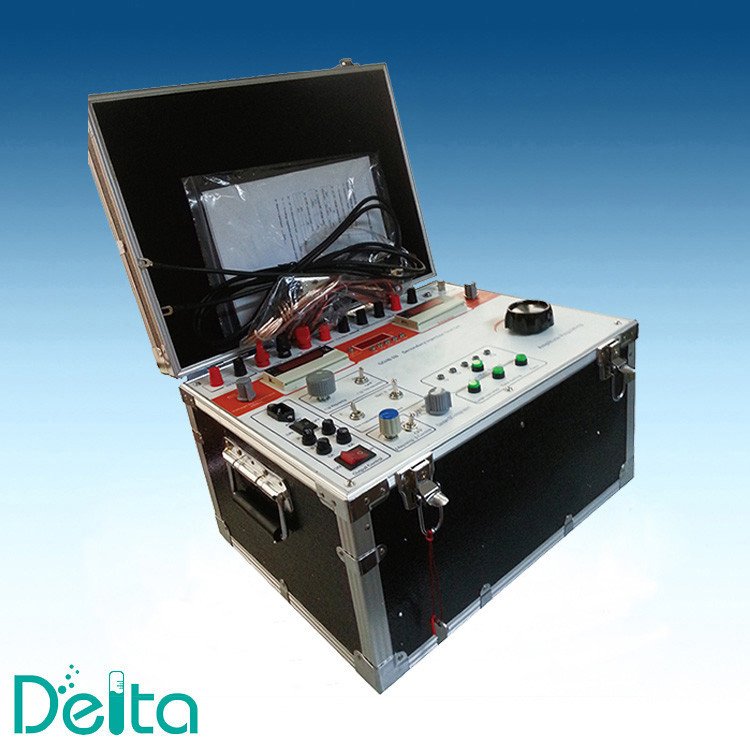

PRT-I Single Phase Secondary Injection Test Set  Real Picture

PRT-I Easy Operation Low Price Single Phase Secondary Injection Test Set 0
