BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kv 80kv 100kv
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-I |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | BDV-I Laboratory Reliable IEC60156 Oil Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Hot Sale Reliable IEC60156 Standard Oil Tester | Item Name | BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kv 80kv 100kv |
|---|---|---|---|
| Description | Bdv-I 60kv 80kv 100kv IEC60156 Oil Tester | Functions | Measure Breakdown Voltage Of Transformer Oil |
| Application Field | Electrical Industry, Oil Laboratory, Etc. | Weight | 28kg |
| Packing Dimension | 42cm*38cm*41cm | Output Voltage | AC 0~80kv, AC 0~100kv |
Product Description
Bdv-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kv 80kv 100kv
Introduction:
- BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kV 80kV 100kV is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
- BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kV 80kV 100kV is very easy for customers to measure the breakdown voltage of all kinds of oil by it.You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.
Features:
Breakdown test of user-defined
Proof test
Calibration interface for customers
Unloading data to PC and making word report automatically Result print
Parameters:
| No. | Item Name | BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kV 80kV 100kV |
| 1 | Output voltage | AC 0~80KV/AC 0~100KV |
| 2 | Rate of voltage rise | 2KV/s±10% |
| 3 | Measuring precision | 3%RDG+0.3%FS |
| 4 | Test times setting | 1~9 |
| 5 | Mixing time setting | 0~99 second |
| 6 | Waiting time setting | 0-9 minute 59second |
| 7 | Maximum storage capacity | 100 groups of test data |
| 8 | Test standards | IEC60156 |
| 9 | Display | 256*128 LCD |
| 10 | Rated power supply | AC 220V±10% 50Hz/60Hz |
| 11 | Environment temperatures | 0-50°C |
| 12 | Relative humidity | ≤80%RH |
| 13 | Size | 420×380×410mm3 |
| 14 | Weight | 28kg |

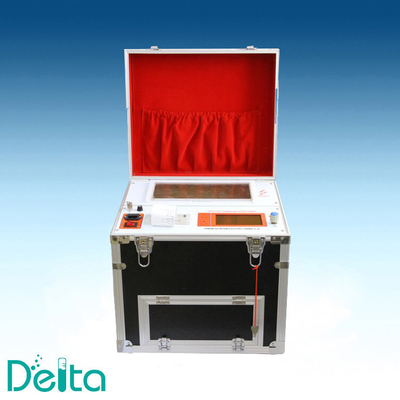

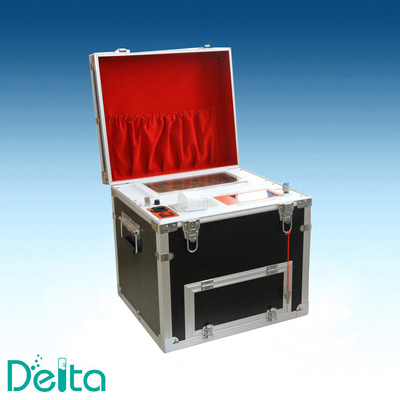

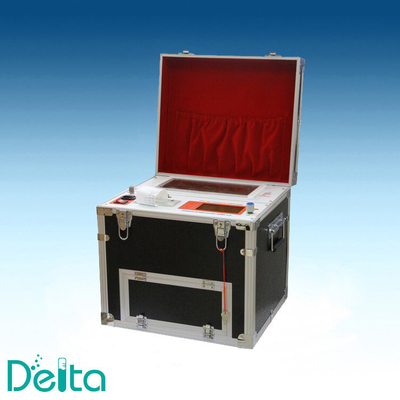

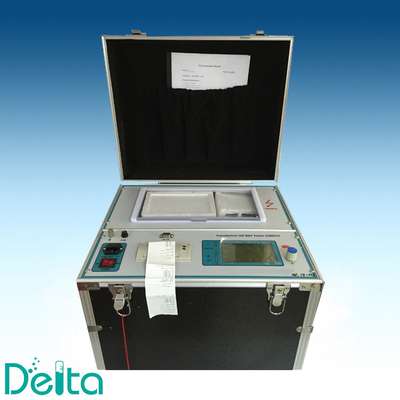

BDV-I Hot Sale Laboratory Reliable IEC60156 Oil Tester 60kv 80kv 100kv Real Picture:
