Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-II |
| Minimum Order Quantity | 1 set Breakdown Voltage Tester |
| Price | USD1.0 |
| Packaging Details | Bdv-II Transformer Oil Breakdown Voltage Testerpacked in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester | Functions | Measure Breakdown Voltage Of Transformer Oil |
|---|---|---|---|
| Test Voltage | Bdv-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester 0-100kV | Rate Of Voltage Rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| Test Standards | ASTM D1816, ASTM D877, IEC60156, IS6792, BS5874 | Size | 620 Mm*430mm*330mm |
| Weight | 41KG | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
Product Description
Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester
Introduction:
- Bdv-II Transformer Oil Breakdown Voltage Tester is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
- Bdv-II Transformer Oil Breakdown Voltage Tester has large LCD display, micro-printer and can store 100 groups data;
- Bdv-II Transformer Oil Breakdown Voltage Tester is multi-functional, stable, and easy for operation.
Functions:
- Breakdown test of user-defined
- Proof test
- IEC60156/IS6792/BS5874 test
- ASTM D1816 standard test
- ASTM D877 standard test
- 5 minutes standard test
- Manual test
- Calibration interface for customers
- Uploading data to PC and making word report automatically.
- Result print
Parameters:
| NO | Item Name | Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester |
| 1 | Output voltage | AC 0V~100KV |
| 2 | Rate of voltage rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| 3 | Max test times setting for user-defined mode | 9 |
| 4 | Stir time setting for user-defined mode | 0~999s |
| 5 | Waiting time setting for user-defined mode | 0~999s |
| 6 | Test error | 3%RDG+0.3%FS |
| 7 | Display | 256´128 LCD |
| 8 | Maximum storage capacity | 100 groups of test data |
| 9 | Power supply | AC220V±10%, 50Hz/60Hz |
| 10 | Working environment | 0-50℃, ≤80%RH |
| 11 | Size | 620 mm*430mm*330mm |
| 12 | Weight | 41kg |

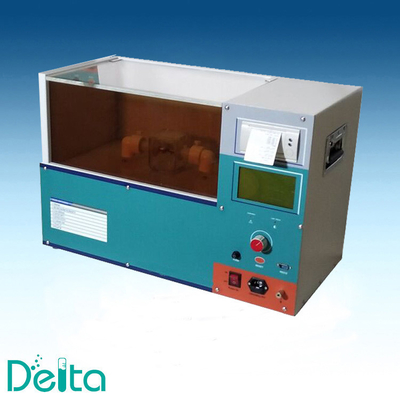

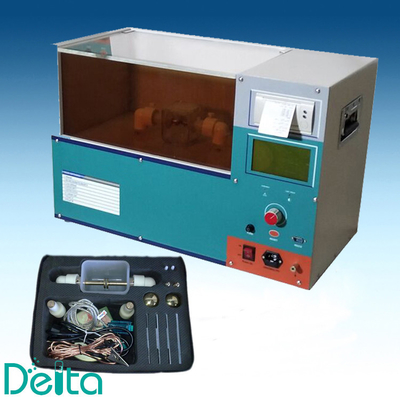

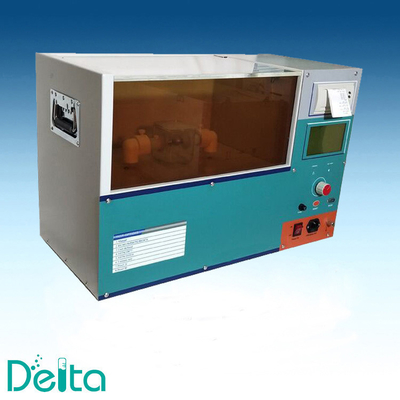

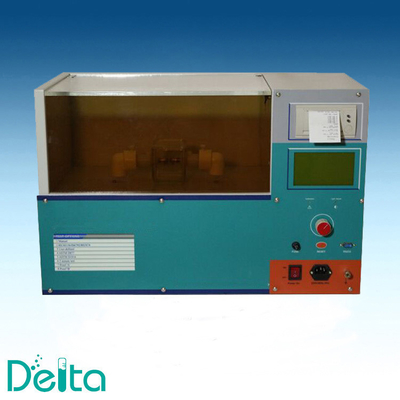

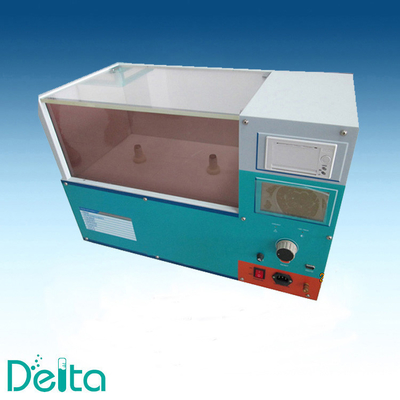

Bdv-II Best Price 100kv Transformer Oil Breakdown Voltage Tester Picture:
