DlT-I IEC156 Electric Oil Volume Resistivity Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | DLT-I |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | DlT-I IEC156 Electric Oil Volume Resistivity Tester Packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Test Dissipation Factor&DC Resistivity Of Oil | Item Name | DlT-I IEC156 Electric Oil Volume Resistivity Tester |
|---|---|---|---|
| Functions | DLT-I IEC156 Electric | Power Supply | AC220V ± 10%, 50Hz |
| Warranty | One Year | Service | OEM Service Is Available |
| Size | 450mm×410mm×320mm | Weight | 25KG |
Product Description
DlT-I IEC156 Electric Oil Volume Resistivity Tester
Introduction:
DlT-I IEC156 Electric Oil Volume Resistivity Tester oil cup adopts a three-electrode structure in accordance with the national standard GB/T5654-2007, and the distance between the electrodes is 2mm, which can eliminate the influence of stray capacitance and leakage on the dielectric loss test results.
DlT-I IEC156 Electric Oil Volume Resistivity Tester instrument adopts intermediate frequency induction heating and PID temperature control algorithm. This heating method has the advantages of non-contact between the oil cup and the heating body, uniform heating, fast speed, and convenient control, so that the temperature is strictly controlled within the preset temperature error range.
DlT-I IEC156 Electric Oil Volume Resistivity Tester internal standard capacitor is SF6 gas-filled three-point-pole capacitor. The dielectric loss and capacitance of the capacitor are not affected by ambient temperature and humidity, so that the accuracy of the instrument can be guaranteed after long-term use
DlT-I IEC156 Electric Oil Volume Resistivity Tester AC test power supply adopts the AC-DC-AC conversion method, which effectively avoids the influence of the mains voltage and frequency fluctuations on the accuracy of the dielectric loss test. Even if the generator generates electricity, the instrument can run correctly.
Specifications:
| NO | Item Name | DlT-I IEC156 Electric Oil Volume Resistivity Tester |
| 1 | Temperature Control Range | 0~120ºC |
| Power Supply | AC 220V±10%, 50Hz/60Hz ±1% | |
| Net Weight | 25KG | |
| Dimension | 450mm×410mm×320mm | |
| Delivery Lead Time | 10 Days | |
| Operation Mode | LCD Touch Screen |

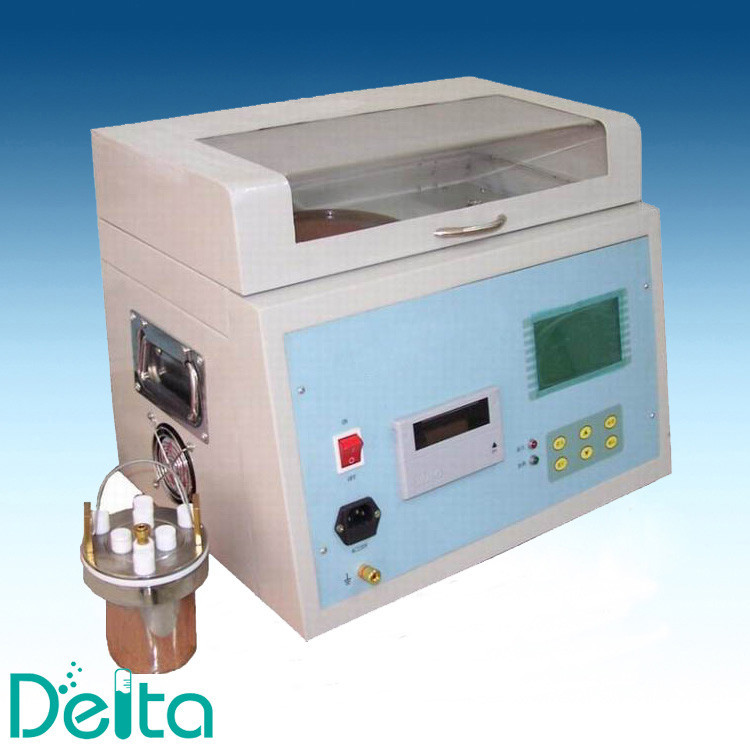

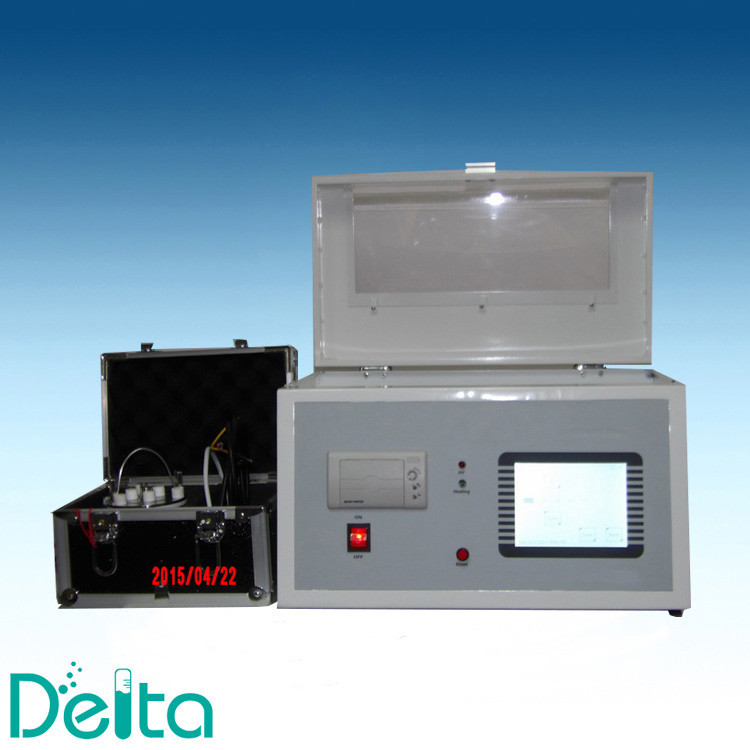

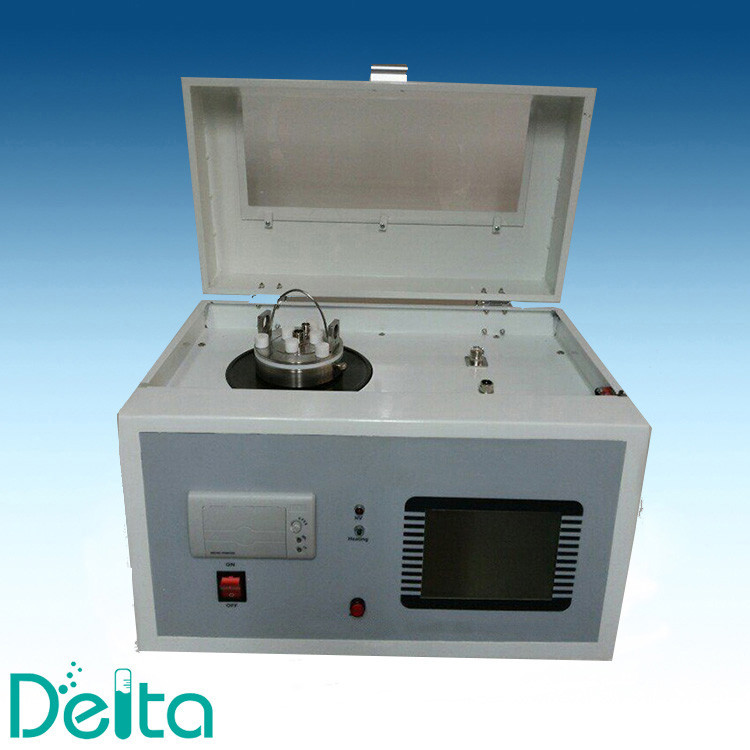

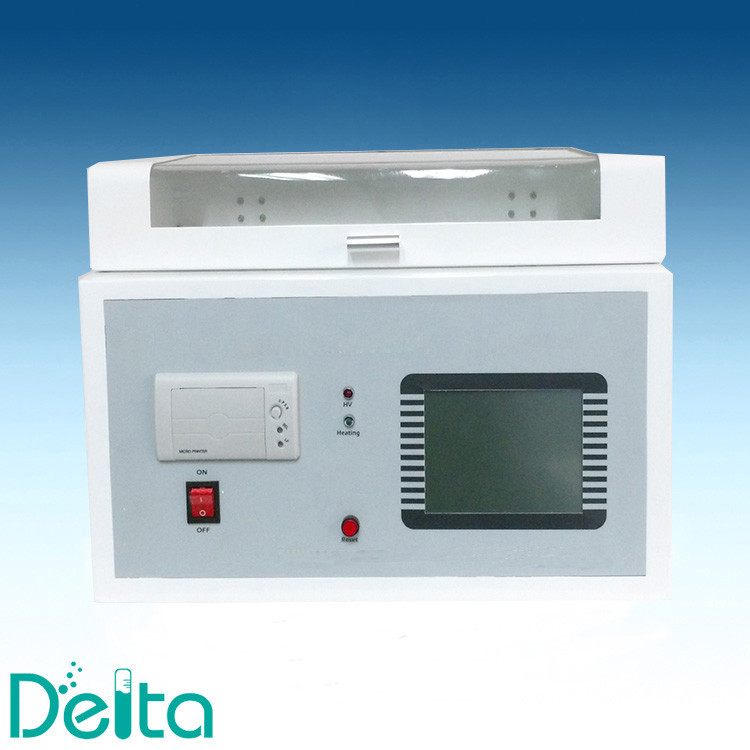

DlT-I IEC156 Electric Oil Volume Resistivity Tester Real Picture:
