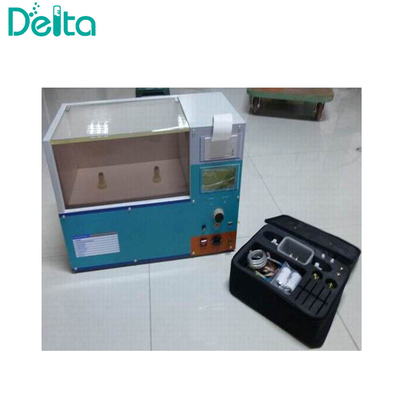

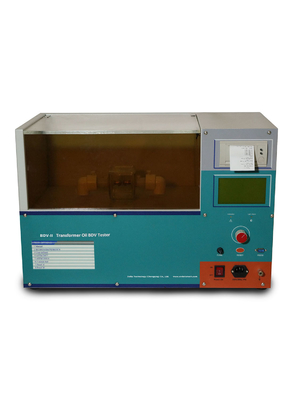

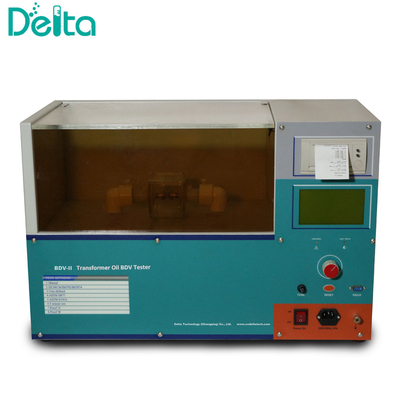

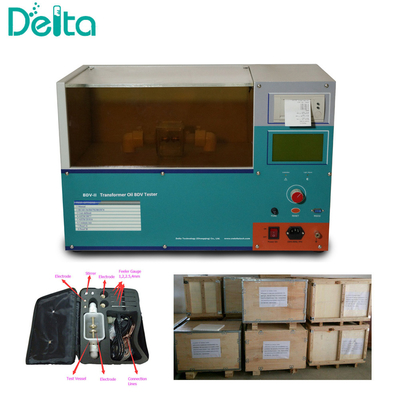

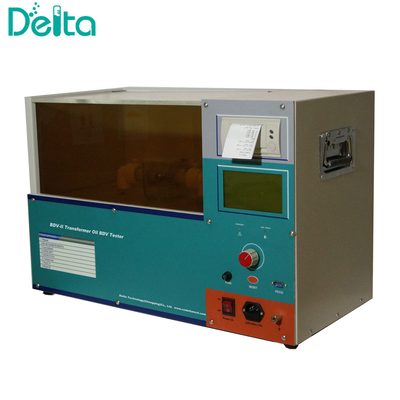

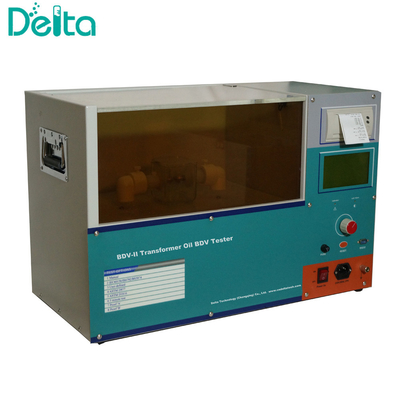

BDV-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | BDV-II |
| Minimum Order Quantity | 1 set Transformer Oil Tester |
| Price | USD1.0 |
| Packaging Details | Bdv-II Transformer Oil Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Bdv-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester | Functions | Bdv-II 100kv Dielectric Insulating Oil Test Kit Test Breakdown Voltage Of Transformer Oil |
|---|---|---|---|
| Test Voltage | Bdv-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester 0-100kV | Rate Of Voltage Rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| Test Standards | ASTM D1816, ASTM D877, IEC60156, IS6792, BS5874 | Size | 620 Mm*430mm*330mm |
| Weight | 41KG | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
| Language | English | OEM Service | Yes, Free Of Charge |
Product Description
BDV-II 100kv Dielectric Insulating Oil Test Kit Breakdown Voltage Bdv Transformer Oil Tester
Introduction:
- Bdv-II 100kv Kit Breakdown Voltage Bdv Transformer Oil Tester is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method ;
- Bdv-II 100kv Kit Breakdown Voltage Bdv Transformer Oil Tester has large LCD display, micro-printer and can store 100 groups data;
- Bdv-II 100kv Kit Breakdown Voltage Bdv Transformer Oil Tester is multi-functional, stable, and easy for operation.
Functions:
- Breakdown test of user-defined
- Proof test
- IEC60156/IS6792/BS5874 test
- ASTM D1816 standard test
- ASTM D877 standard test
- 5 minutes standard test
- Manual test
- Calibration interface for customers
- Uploading data to PC and making word report automatically.
- Result print
Parameters:
| No. | Item Name | BDV-II Breakdown Voltage Bdv Transformer Oil Tester |
| 1 | Output voltage | AC 0V~100KV |
| 2 | Rate of voltage rise | 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
| 3 | Continuously test times | 1 – 9 times |
| 4 | Stir time | 0~999s |
| 5 | Waiting time | 0~999s |
| 6 | Oil temperature measurement range | 0-70℃ |
| 7 | Withstand voltage time | 0-1 min |
| 8 | Ignition arc time | ≤10mS |
| 9 | Test error | 3%RDG+0.3%FS |
| 10 | Display | 256´128 LCD |
| 11 | Data storage | 100 groups of test data |
| 12 | Power supply | AC220V±10%, 50Hz/60Hz |
| 13 | Working environment | 0-50℃, ≤80%RH |
| 14 | Size | 460mm * 380mm * 360mm |
| 15 | Weight | 38kg |
