BDV-A Transformer Oil Test Kit Multifunctional ASTM D877 ASTM D1816 IEC156
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | BDV-A |
| Minimum Order Quantity | 1 set Transformer Oil Test Kit |
| Price | USD1.0 |
| Packaging Details | Transformer Oil Test Kit packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets Transformer Oil Test Kit per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ASTM D877 ASTM D1816 IEC156 Standard China Made Low Price Transformer Oil Test Kit | Item Name | BDV-A Transformer Oil Test Kit Multifunctional ASTM D877 ASTM D1816 IEC156 |
|---|---|---|---|
| Functions | Test Breakdown Voltage Of Transformer Oil | Test Voltage | 0-80kV |
| Rate Of Voltage Rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% | Test Standards | ASTM D1816, ASTM D877, IEC60156, IS6792, BS5874 |
| Size | 550 Mm*500mm*580mm | Weight | 38KG |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
BVD-A Transformer Oil BDV Test Kit
Introduction:
- BDV-A Transformer Oil BDV Test Kit is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
- The oil test vessel with temperature measurement unit, so it can detect oil temperature;
- With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
- BDV-A Transformer Oil BDV Test Kit has large LCD display, all the selection can be done by touch panel with color LCD;
- BDV-A Transformer Oil BDV Test Kit also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
- BDV-A Transformer Oil BDV Test Kit is multi-functional, stable, and easy for operation;
Functions:
- Breakdown test of user-defined
- Proof test
- IEC60156/IS6792/BS5874 test
- ASTM D1816 standard test
- ASTM D877 standard test
- 5 minutes standard test
- Manual test
- Calibration interface for customers
- Uploading data to PC and making word report automatically.
- Result print
Parameters:
| No. | Item Name | BDV-A Transformer Oil BDV Test Kit |
| 1 | Output voltage | AC 0V~80KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550 mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |

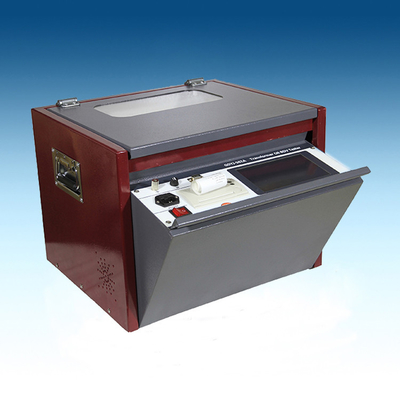

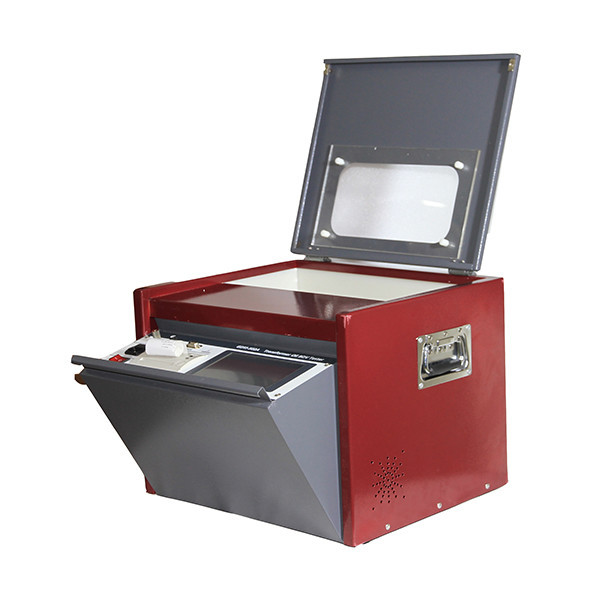

Real Picture:
