Touch Screen Wide Range 300V 100A Load Bank Battery Testing Equipment
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | XDC |
| Minimum Order Quantity | 1 set Battery Testing Equipment |
| Price | USD2000 - USD3500 / set Battery Testing Equipment |
| Packaging Details | Battery Testing Equipment is packed in one plywood case, about 22kg |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Battery Testing Equipment / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Battery Testing Equipment | Usage | Battery Capacity, Charge, Discharge Test |
|---|---|---|---|
| Output Voltage | DC10-300V | Dimension | 500mm*300mm*450mm |
| Output Current | 0-100A | Operation Mode | Through The Panel Directly |
| Type | Battery Test Equipment | Data Storage | 2G |
| Gross Weight | 22kg | Power Supply | 220V, 50Hz |
| Other Name | Battery Tester, Battery Discharging Tester, Battery Charging Tester, Battery Capacity Tester, Battery Testing Equipment | Use Environment | 0-45 Degree |
| OEM Service | Available |
You can tick the products you need and communicate with us in the message board.
| XDC-60V Battery Testing Equipment | 10 sets | |
|---|---|---|
| XDC-120V Battery Testing Equipment | 5 sets | |
| XDC-180V Battery Testing Equipment | 3 sets | |
| XDC-300V Battery Testing Equipment | 3 sets |
Product Description

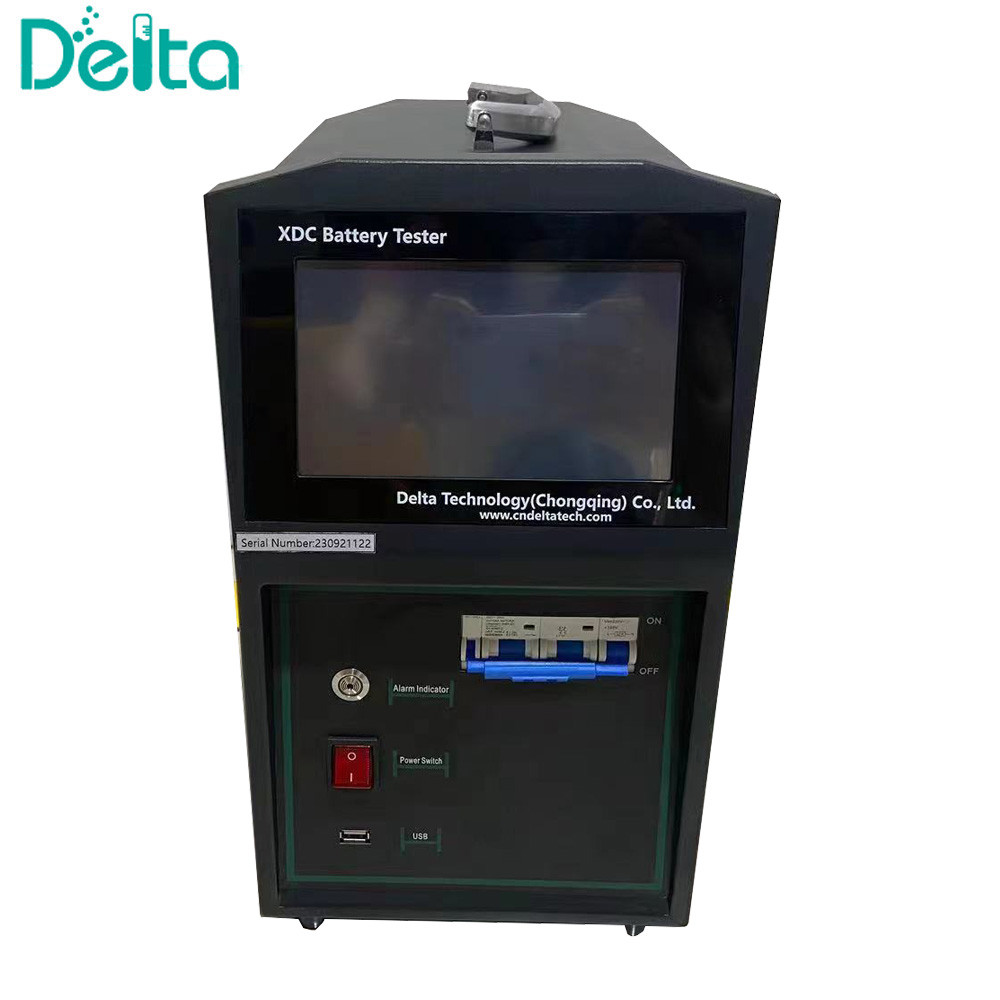

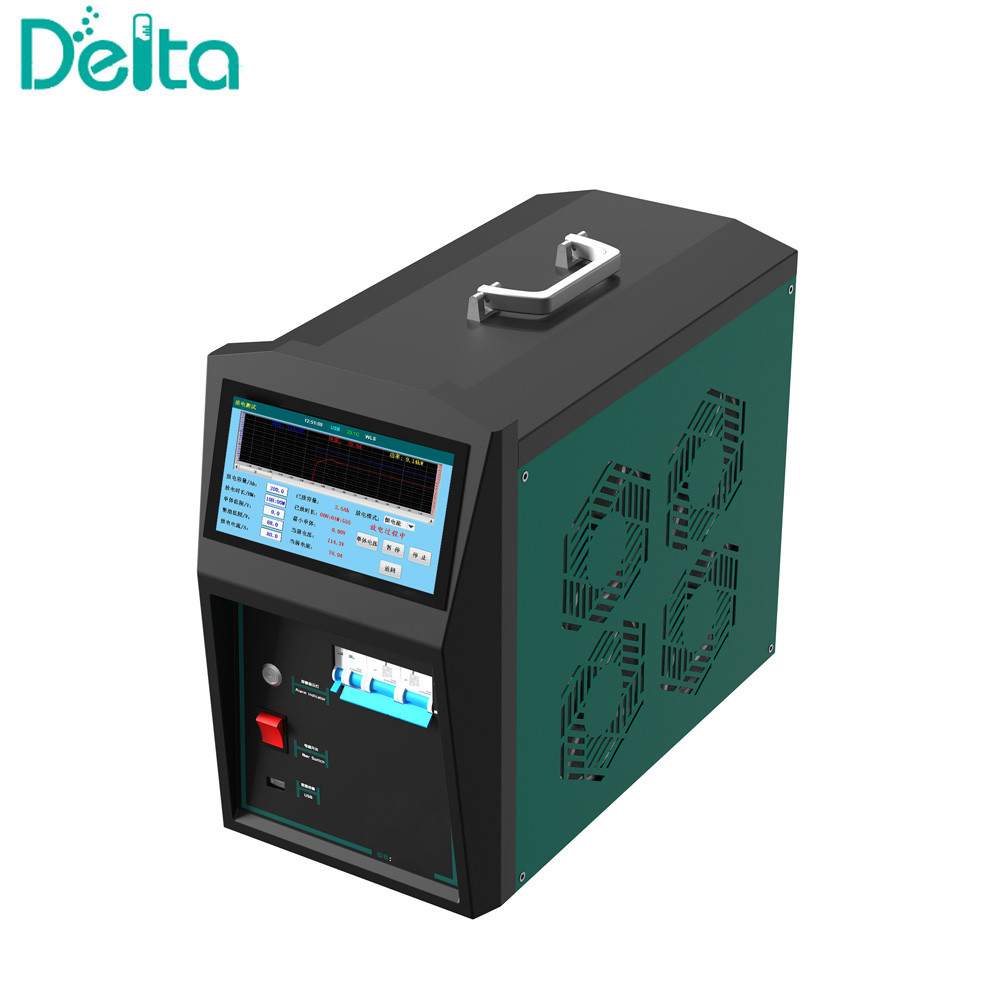

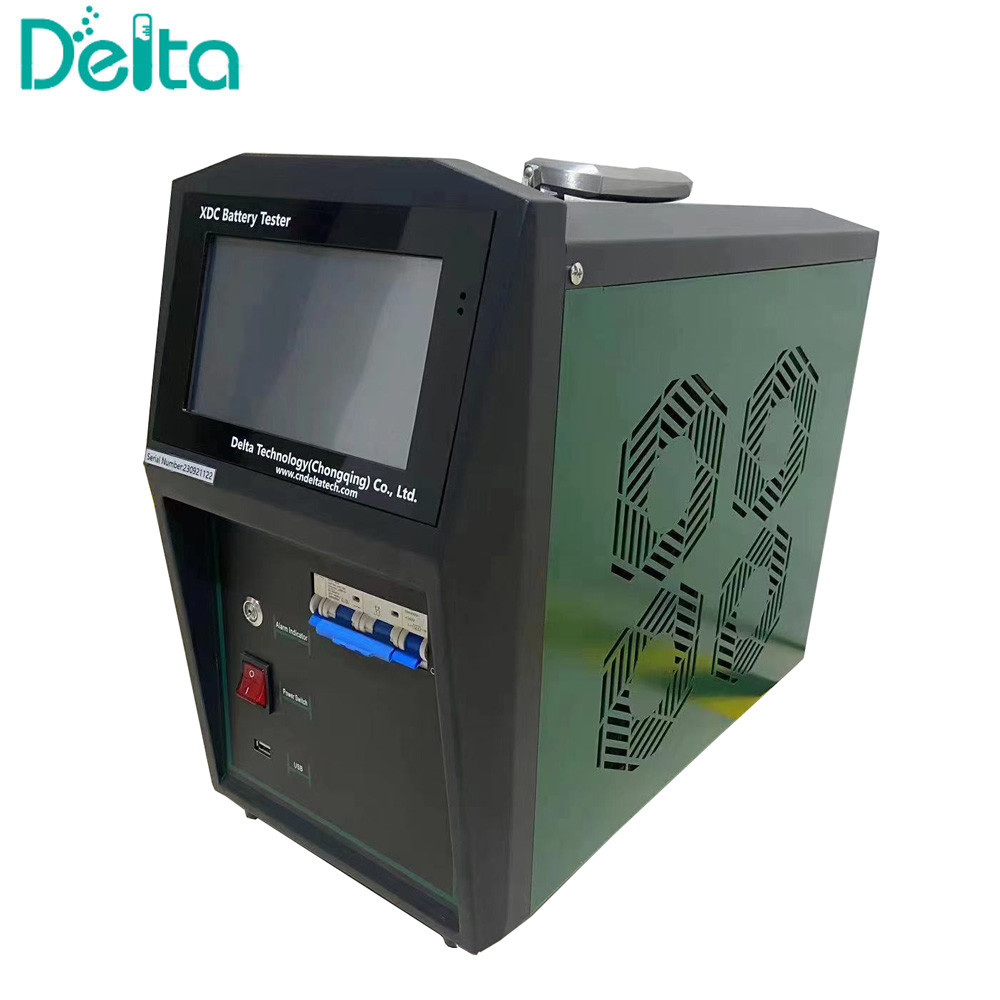

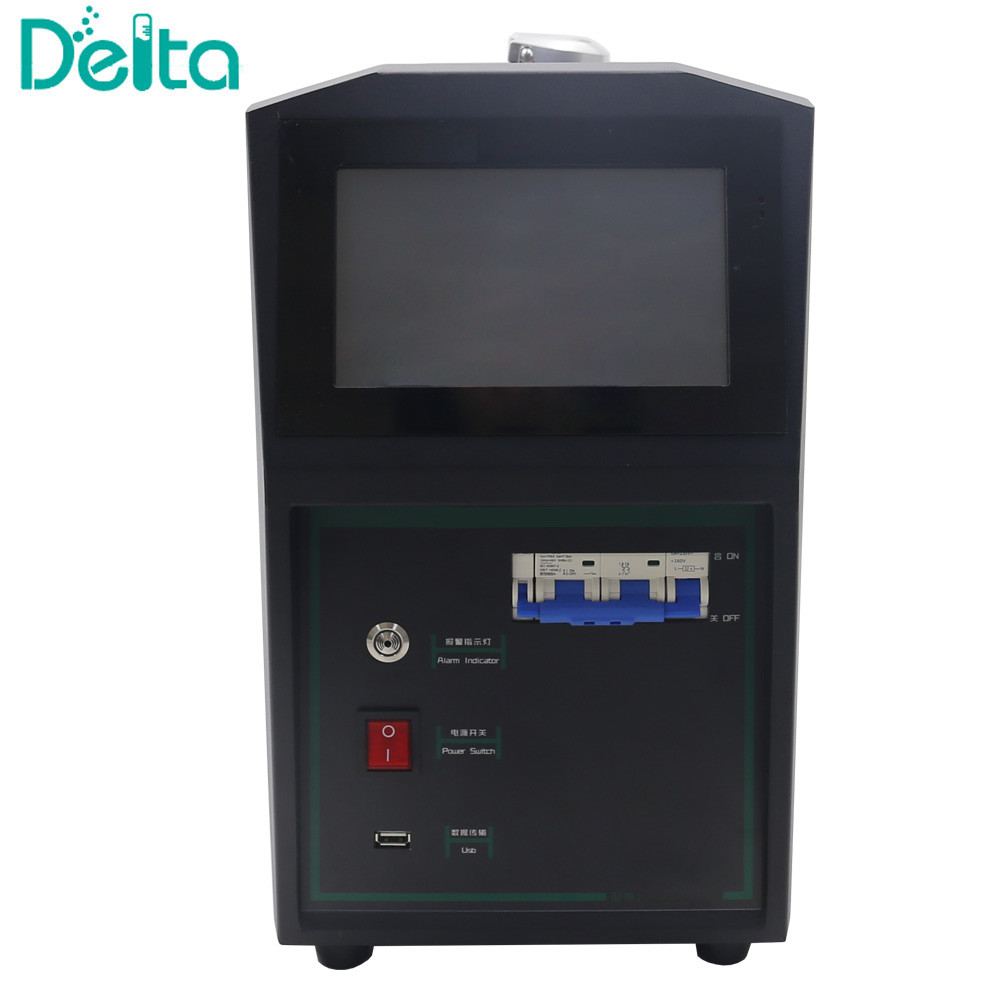

XDC Touch Screen Wide Range 300V 100A Load Bank Battery Testing Equipment
Brief Introduction:
XDC Battery Testing Equipment can serve as discharge loads and realize discharge with the set constant currents by means of continuous control over discharge currents.
When the voltage of a battery pack or a single battery is lower than the limit of voltage, or the set discharge duration or reaches the set discharge capacity during discharge, the tester will automatically stop discharge and record the real-time data of all valuable and continuous processes.
The voltage information of single batteries monitored by the tester is subject to wireless repeater access that is simple, secure and accurate.
With strong software, the setup and data treatment can be done through the touch screen. The process data can be read and uploaded to a computer for analysis.
Main Parameters:
| Item Name | XDC Wide Range 300V 100A Load Bank Battery Testing Equipment |
| Applicable battery | Lead-acid battery |
| Output voltage | DC10-300V |
| Output current | 10~19V: 0~50A 19~180V: 0~100A 180~300V: 0~50A |
| Operating mode | Use the tester independently or with a constant-current module |
| Protection performance | Input terminal overvoltage protection, prompts on the LCD; Reverse polarity protection, buzzer alarm; Overcurrent protection, prompts on the LCD; 85ºC overheat protection, prompts on the LCD, buzzer alarm. |
| Single battery voltage acquisition | The 433RF wireless module supports a communication distance longer than 100 m and monitoring for single battery voltages of 2V, 4V, 6V and 12V. If the total voltage is not beyond the set value, each battery pack will have an unlimited single battery quantity and can monitor one to sixteen RF wireless monitoring modules at the same time. One RF wireless monitoring module can monitor 12 single batteries at the same time. |
| Control accuracy | Discharge current: ≤±1%; battery pack's terminal voltage: ≤ ±0.5%; single battery voltage: ≤±0.1% |
| Communication with PC | RS485 interface |
| Data storage | 2Gbit FLASH |
| Operating conditions | |

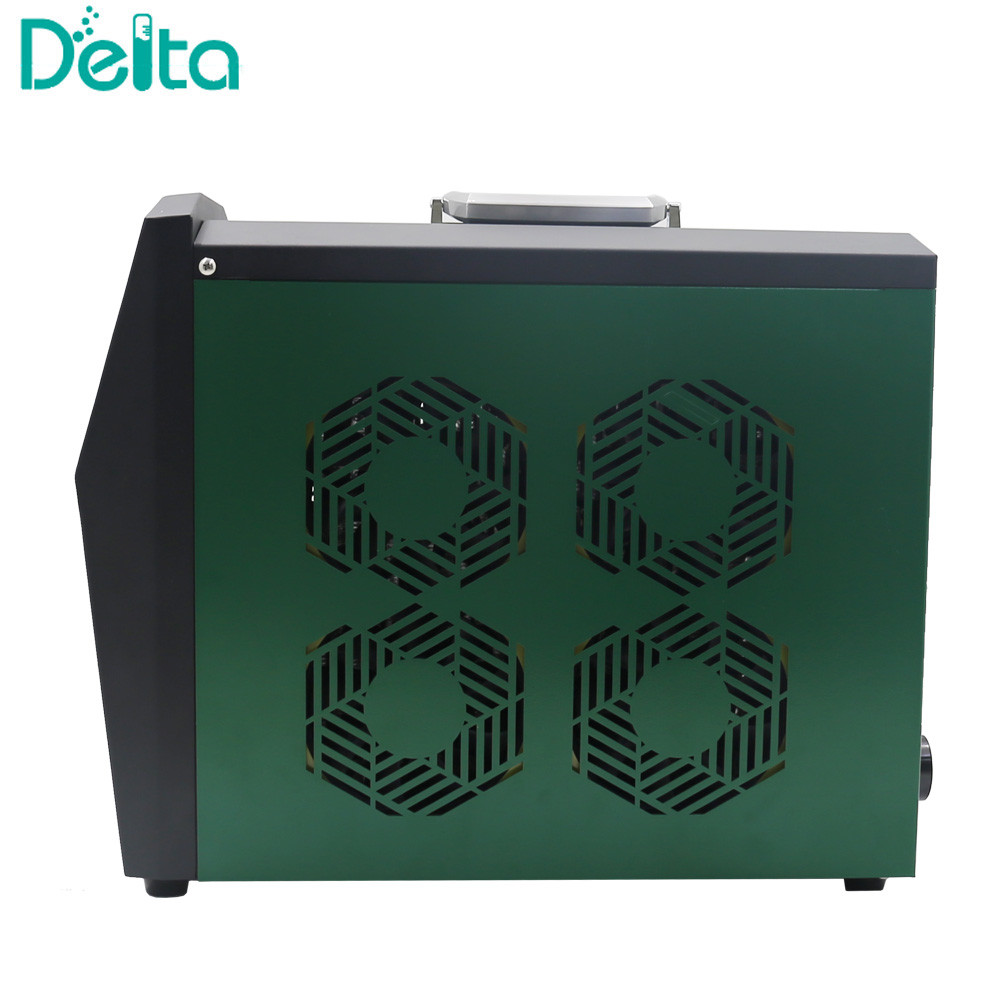

| Cooling | Forced air cooling |
| Temperature | Operating temperature: -5~50ºC; storage temperature: -40~70ºC |
| Humidity | Relative humidity: 0~90% (40±2ºC) |
| Noise | <60dB |
| Operating power supply | |
| Voltage | 220V AC (-20%~+30%); frequency: 45~65Hz; |
| Withstand voltage test | Input--casing: 2200Vdc 1min Input--output: 2200Vdc 1min Output--casing: 700Vdc 1min |
| Safety | Compliance line with EN610950 |

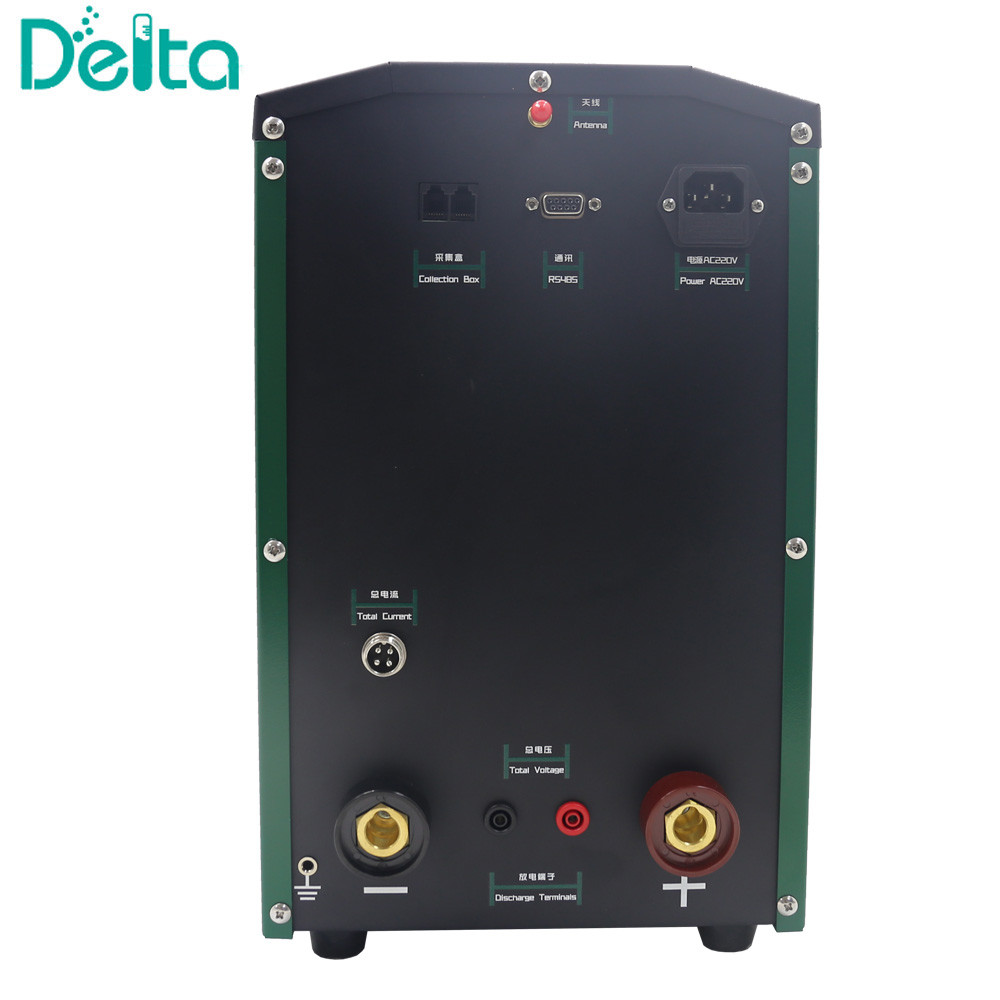

| Wiring | |
| AC output | Male socket in line with the applicable national standard, applicable to 1~1.5mm2 cable |
| DC output | 25mm2 cable quick plug (red: positive; black: negative) |
