Lithium Battery Charging Discharging Battery Equalizing Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | XDC-3930 |
| Minimum Order Quantity | 1 set Battery Equalizing Tester |
| Price | USD2000 - USD3500 / set Battery Equalizing Tester |
| Packaging Details | Battery Equalizing Tester is packed in one plywood case, about 22kg |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Battery Equalizing Tester / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Lithium Battery Charging Discharging Battery Equalizing Tester | Usage | Battery Charging Discharging Battery Equalizing |
|---|---|---|---|
| Output Voltage | DC1.500V~4.350V | Dimension | 500mm*300mm*450mm |
| Output Current | 0.5~5A Adjustable | Operation Mode | Through The Panel Directly |
| Type | Battery Test Equipment | Data Storage | 2G |
| Gross Weight | 22kg | Power Supply | 220V, 50Hz |
| Other Name | Battery Tester, Battery Discharging Tester, Battery Charging Tester, Battery Capacity Tester, Battery Equalizer | Use Environment | 0-45 Degree |
| OEM Service | Available |
You can tick the products you need and communicate with us in the message board.
| XDC-3930 Battery Equalizing Tester | 10 sets |
|---|
Product Description

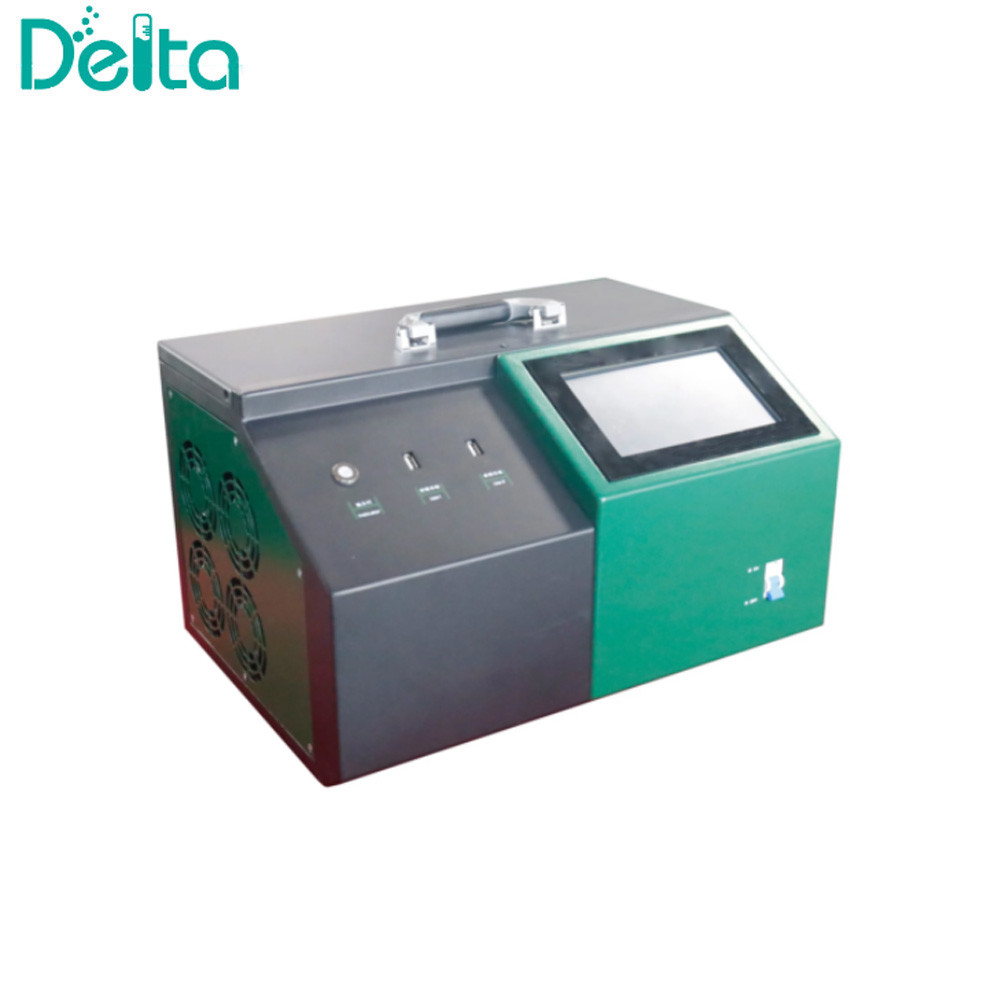

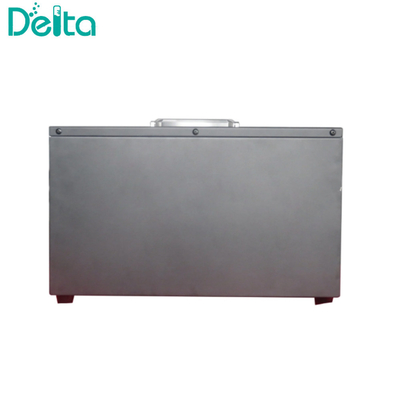

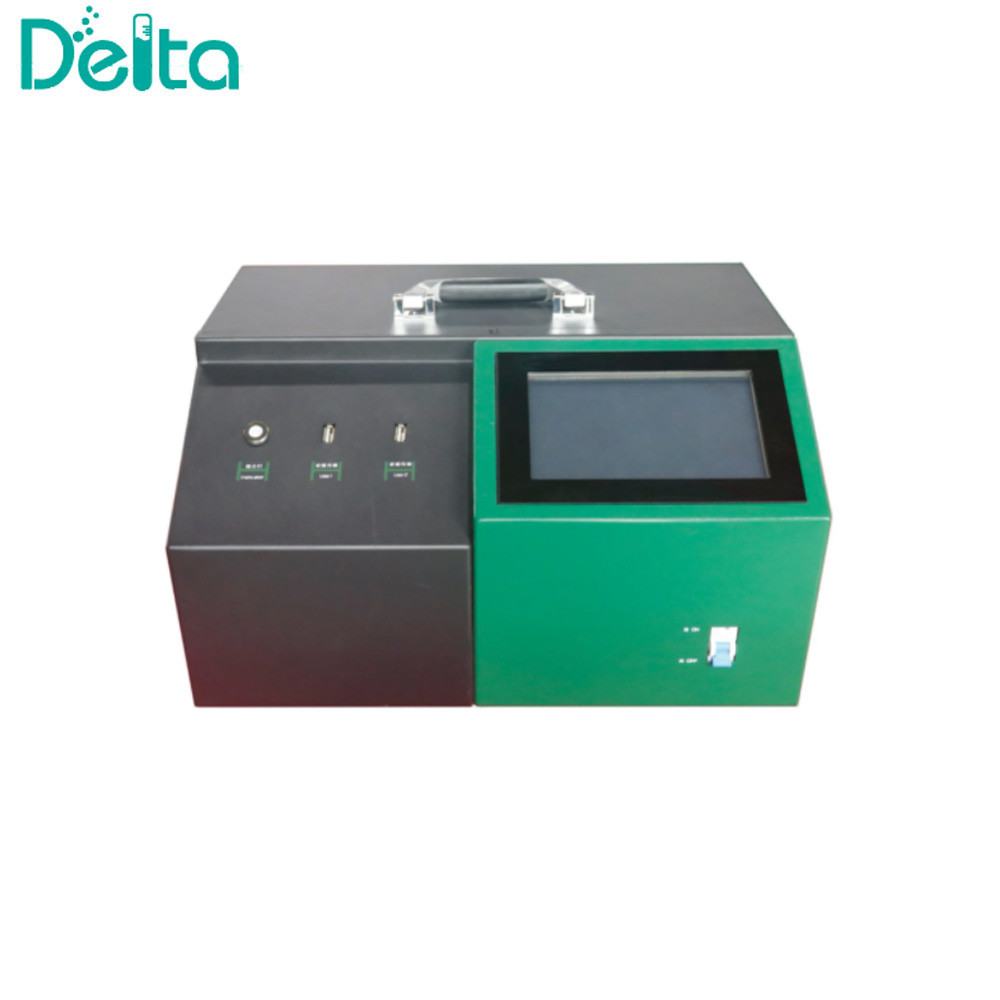

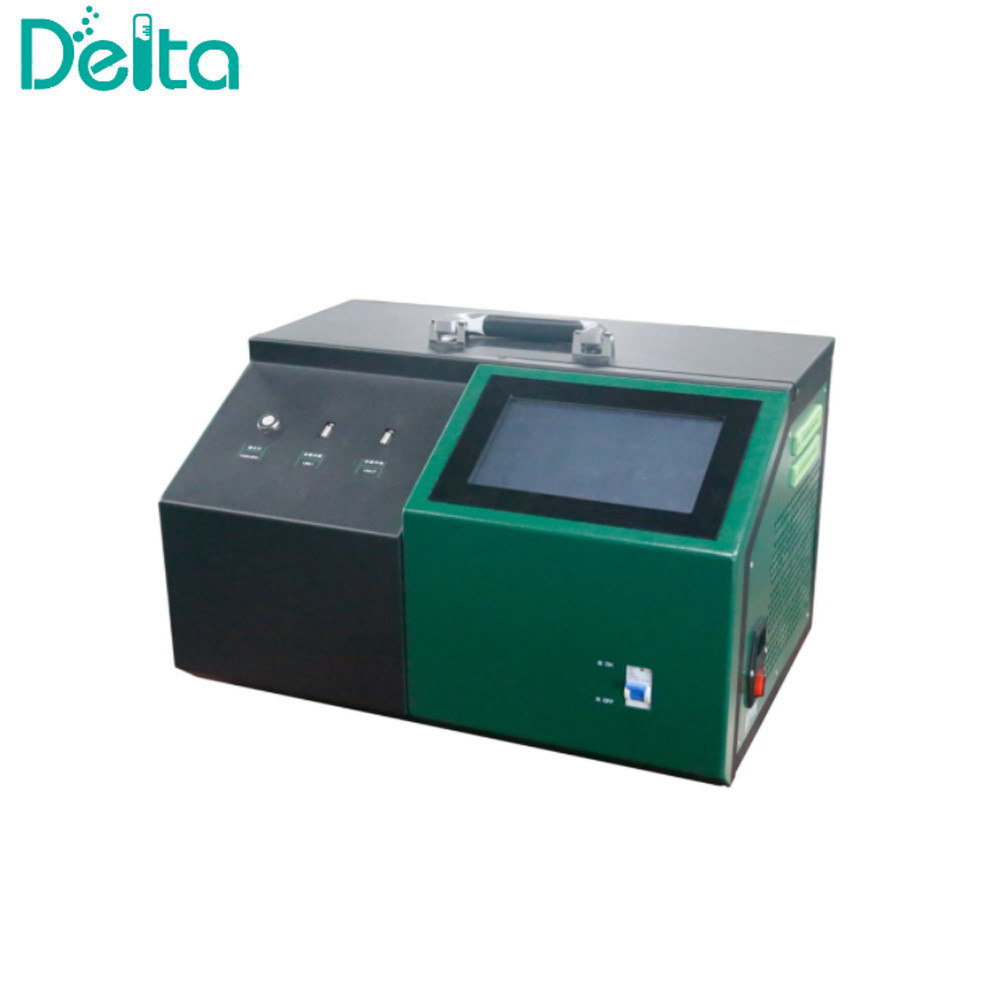

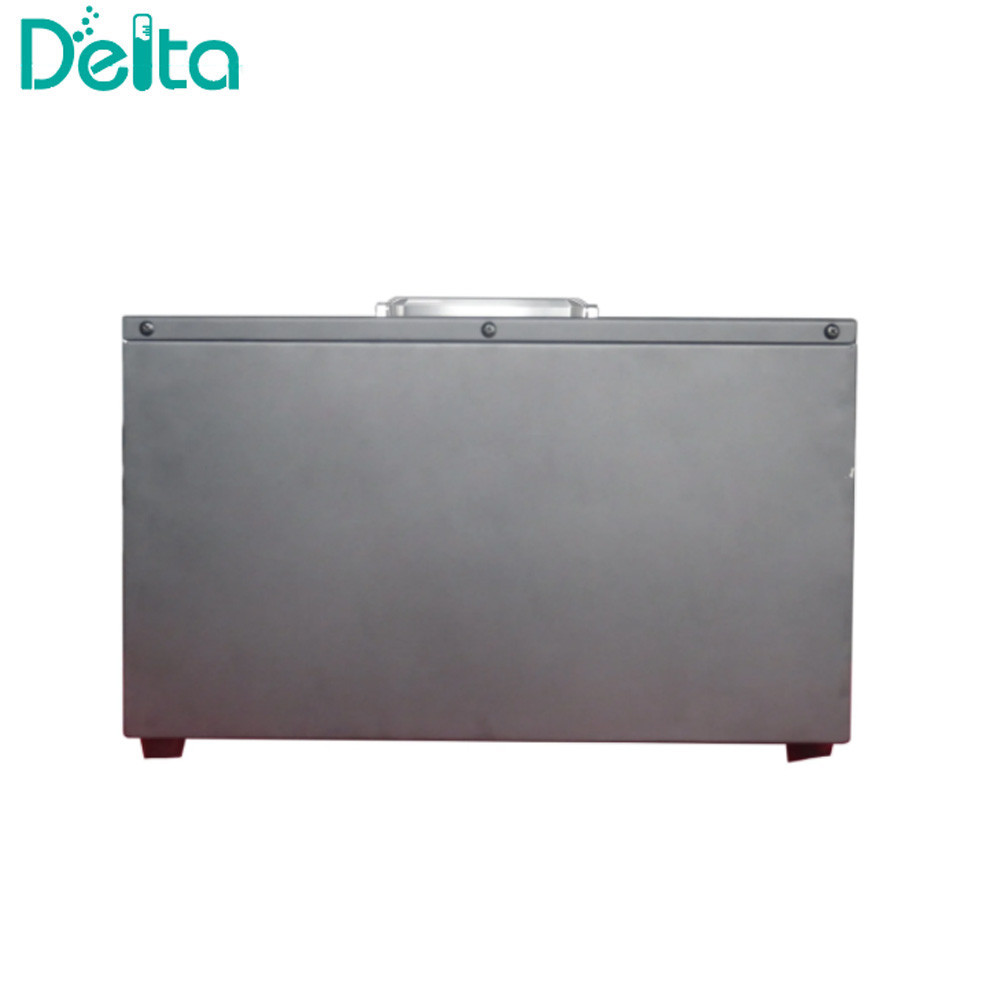

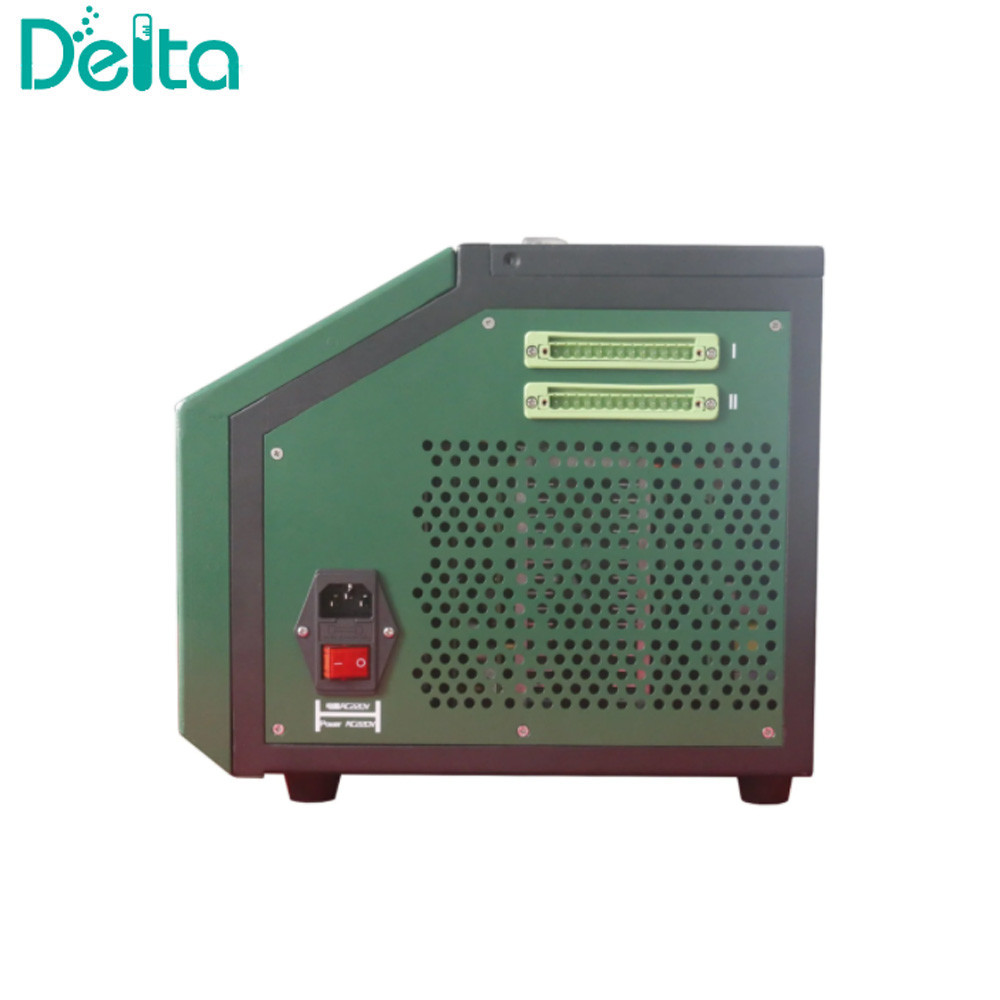

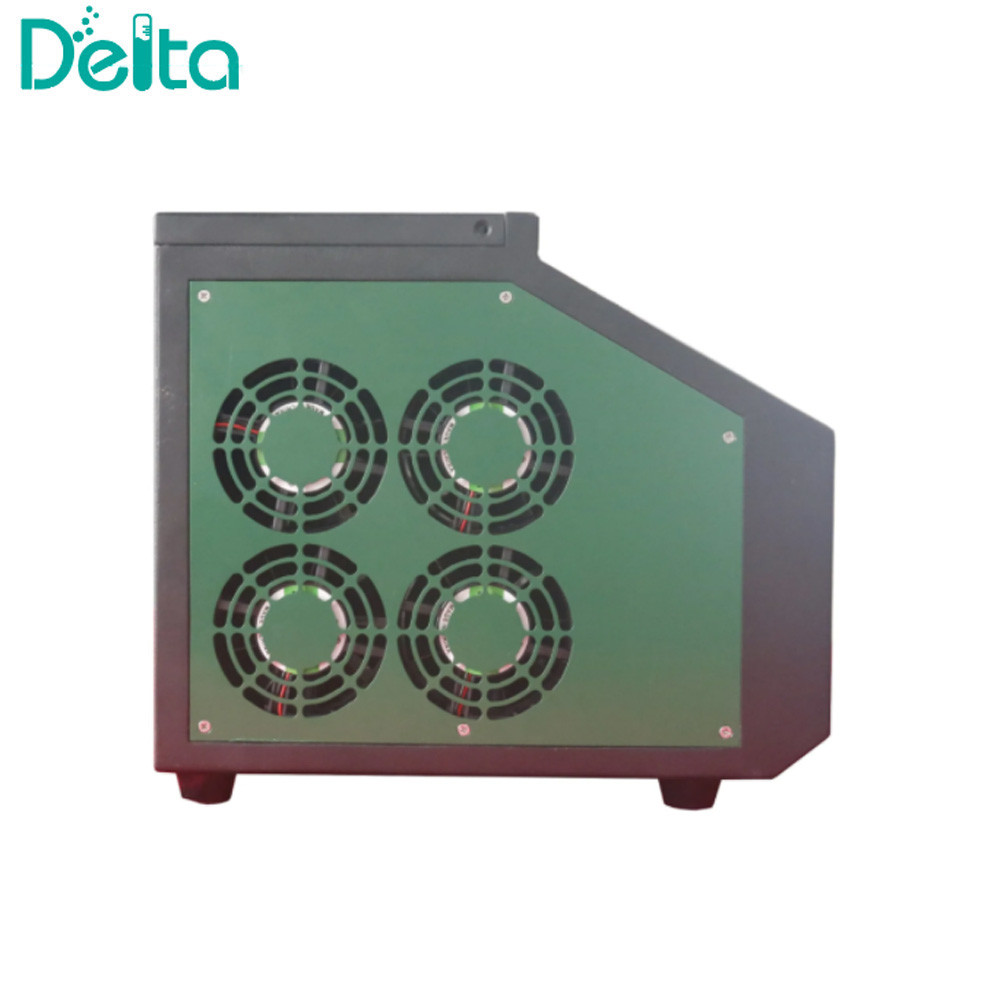

XDC-3930 Lithium Battery Charging Discharging Battery Equalizing Tester
Introduction:
XDC-3930 Lithium Battery Charging Discharging Battery Equalizing Tester is used to perform the repair and maintenance of voltage differences for module cells, which can completely solve the issue of battery capacity degradation via manual & automatic two-way maintenance.
This series is specially designed to guarantee battery safety performance, extending the battery life, and reducing the cost of battery repair and replacement.
Specifications:
| Model Name | 12-05 | 24-05 | 36-05 | 48-05 | 60-05 | 72-05 |
| Channels(strings) | Single-cell *12 | Single-cell *24 | Single-cell *36 | Single-cell *48 | Single-cell *60 | Single-cell *72 |
| Power supply | 220V/AC ±15% 50Hz | |||||
| Voltage range | DC1.500V~4.350V | |||||
| Equalization current | 0.5~5A adjustable | |||||
| Maintenance modes | Parallel charging, parallel discharging, equalization&maintenance | |||||
| Human-machine interaction | 7 inch LCD touch screen | |||||
| Voltage accuracy | 5V@+0.1%FS±2mV | |||||
| Current accuracy | 5A@±1%FS±0.05A | |||||
| Temperature | -10~65C@+2C | |||||
| Connection modes | Reverse (negative), sequence (positive) | |||||
| External communication | RS485/USB | |||||
| Heat dissipation | Air cooling | |||||
| Protection direction | Cross-connection, leakage, reverse connection, under-voltage, over-voltage | |||||
Features:
Arbitrarily selected as replenishment, discharging, and equalizing, which is convenient to use in different working conditions.
Covers the maintenance of mainstream lithium batteries in the market.
The maintenance process supports end depolarization, which guarantees a highly consistent effect after equalization.
The internal channels are independently designed without interfering with each other, ensuring that each battery cell will not be over-charged and discharged.
Easy to carry, the equipment supports 1~6 channels to expand, and a single channel supports 12 strings of battery cells' equalization at the same time.
