Portable Battery Internal Resistance Tester Low Price Battery Test Meter
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | XDC-3915 |
| Minimum Order Quantity | 1 set Battery Test Meter |
| Price | USD2000 - USD3500 / set Battery Test Meter |
| Packaging Details | Battery Test Meter is packed in one plywood case, about 22kg |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Battery Test Meter / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Portable Battery Internal Resistance Tester | Usage | Portable Battery Internal Resistance Tester |
|---|---|---|---|
| Output Voltage | DC1.500V~4.350V | Dimension | 500mm*300mm*450mm |
| Output Current | 0.5~5A Adjustable | Operation Mode | Through The Panel Directly |
| Type | Battery Test Equipment | Data Storage | 2G |
| Gross Weight | 22kg | Power Supply | 220V, 50Hz |
| Other Name | Battery Tester, Battery Internal Resistance Tester | Use Environment | 0-45 Degree |
| OEM Service | Available |
You can tick the products you need and communicate with us in the message board.
| XDC-3915 Battery Internal Resistance Tester | 10 sets |
|---|
Product Description

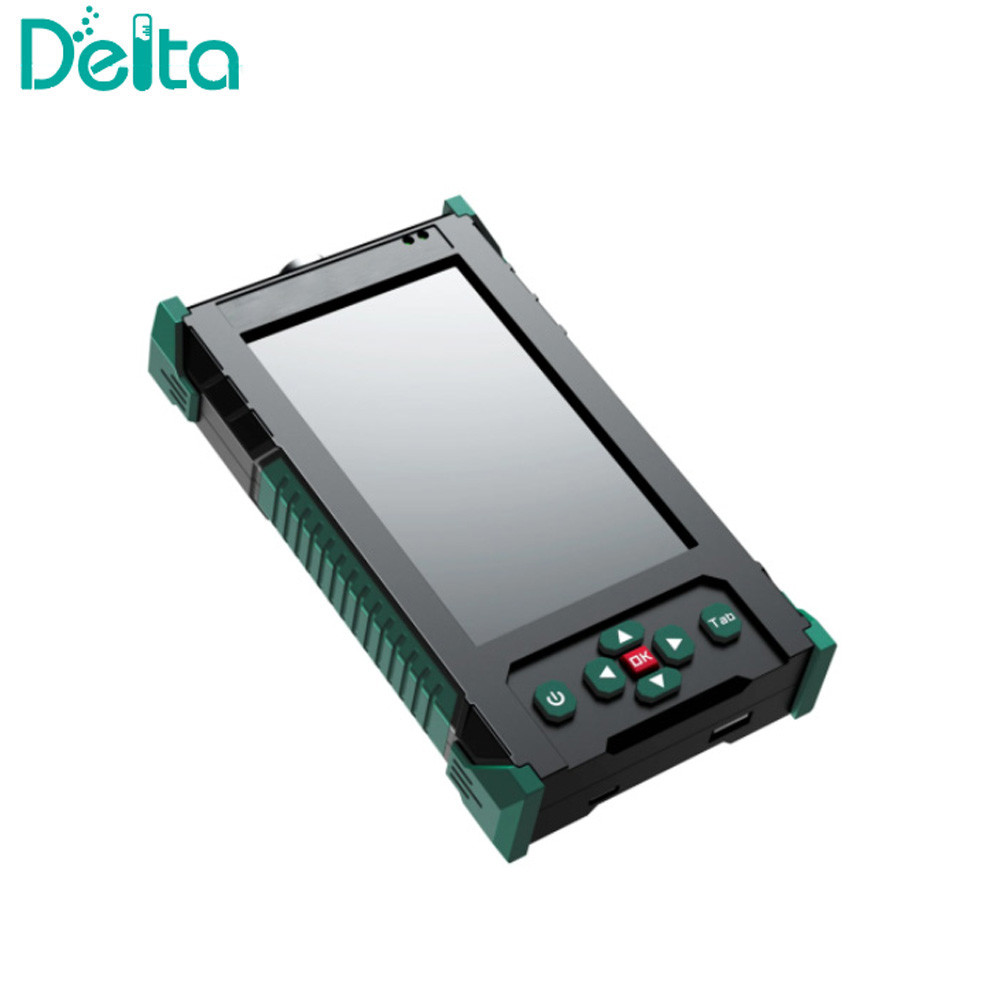

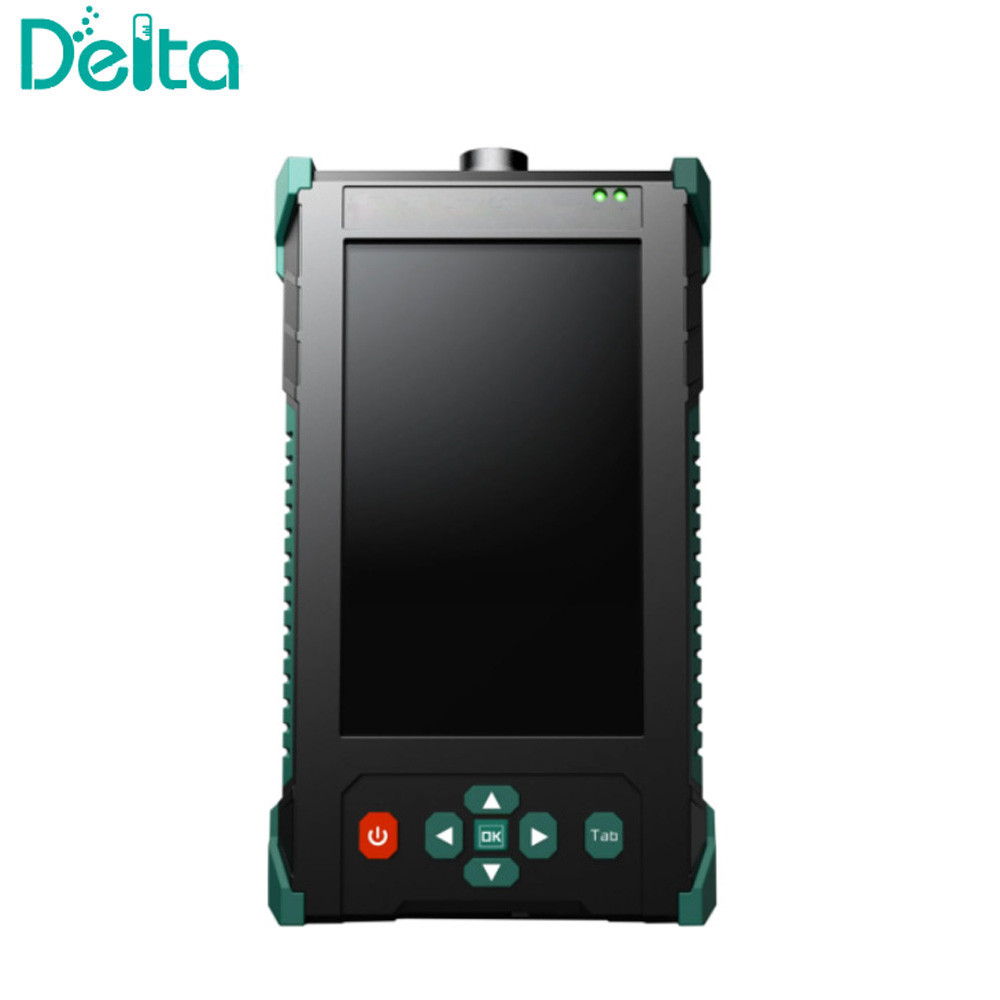

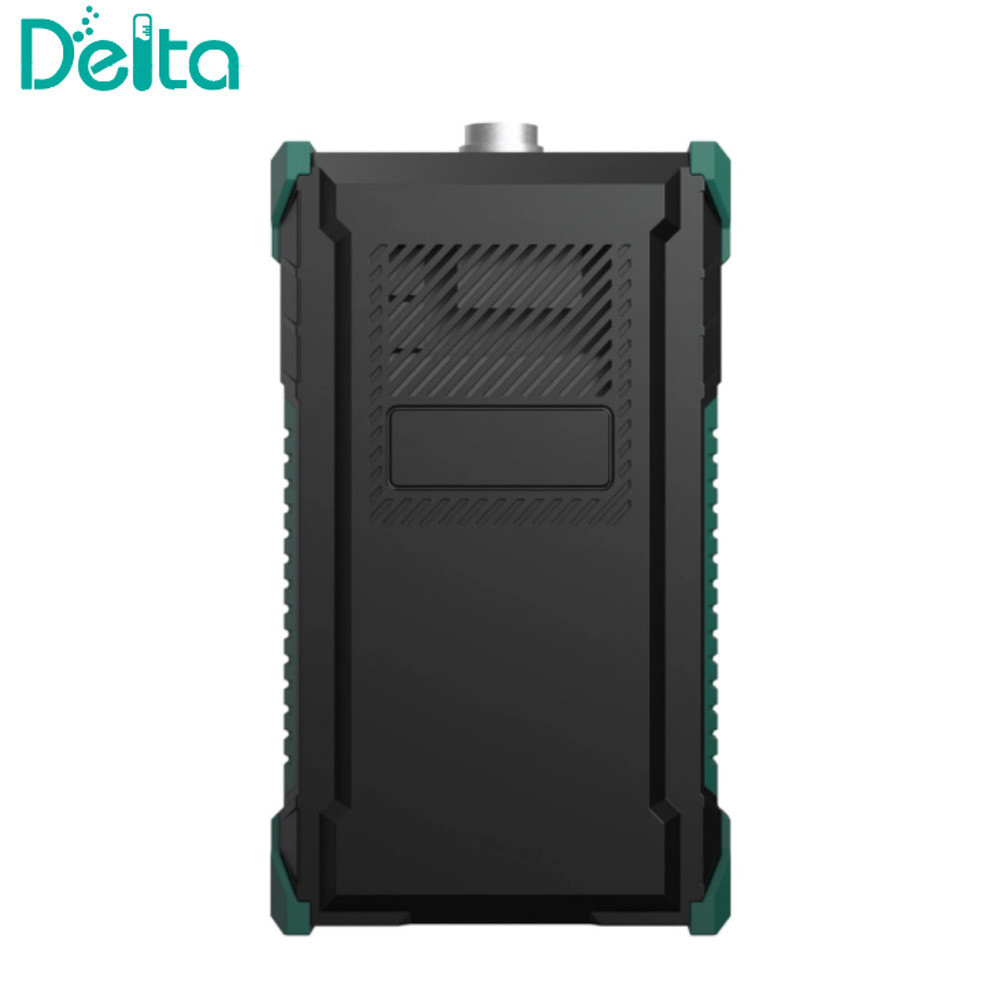

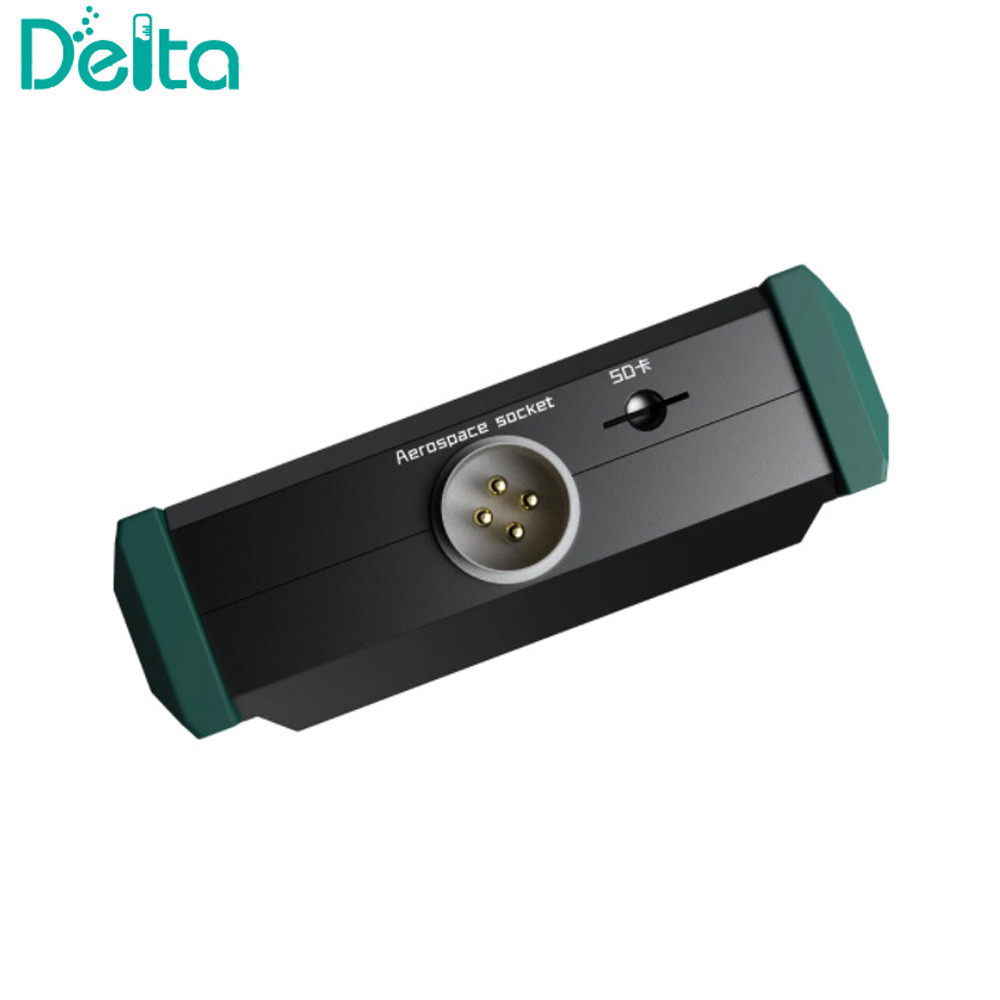

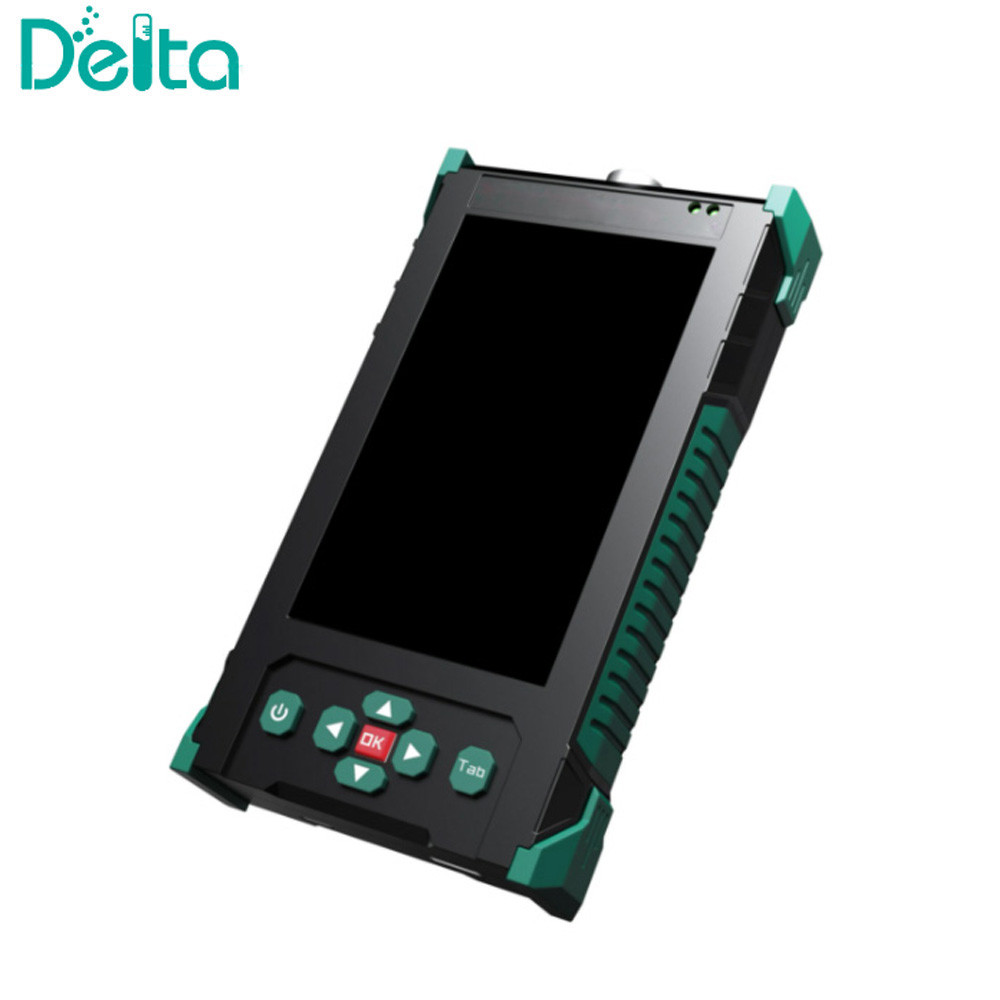

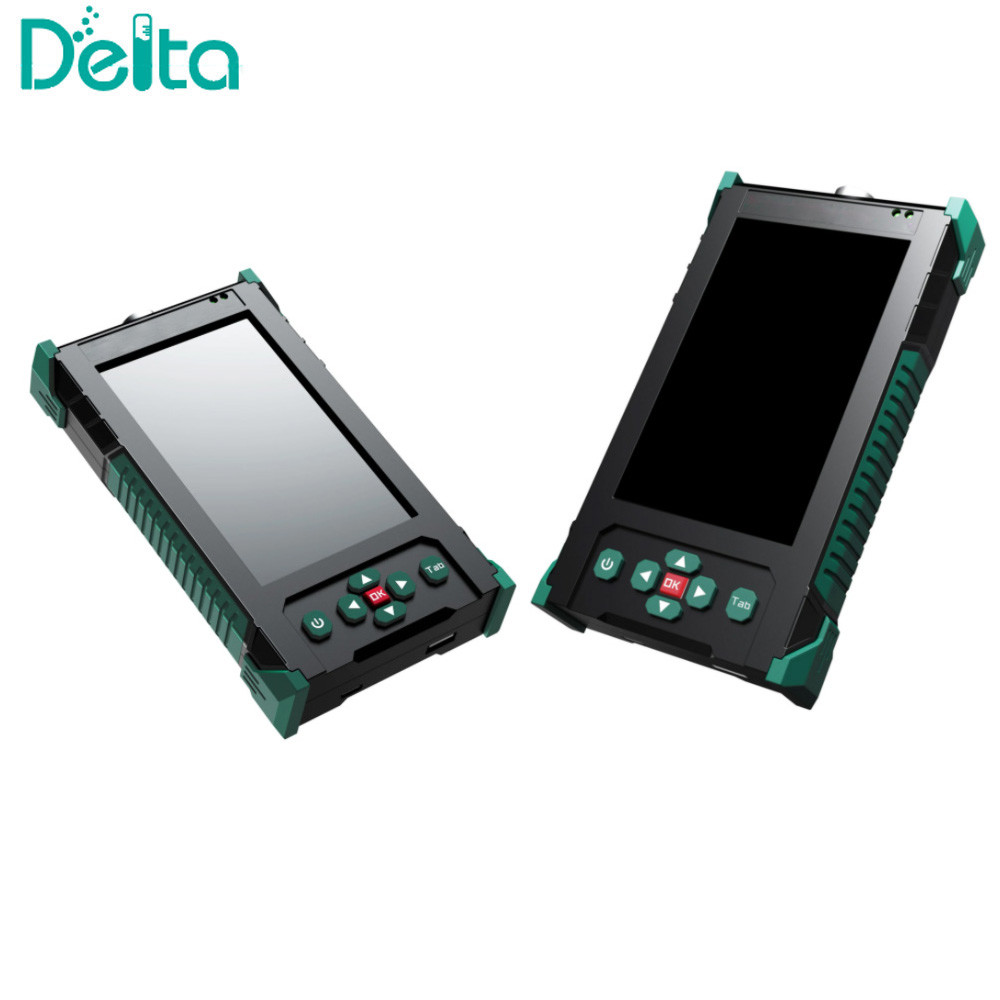

XDC-3915 Portable Battery Internal Resistance Tester Low Price Battery Test Meter
Introduction:
- XDC-3915 handheld battery internal resistance tester adopts an advanced AC discharge test method to accurately measure the battery voltage and internal resistance, and in this way determine the battery capacity and technical status of the battery.
- To realize the internal resistance matching during replacing the battery, it is very important to do testing before& after replacing the new battery.
- Battery internal resistance is used to identify the real backward battery; key operation and LCD touch two kinds of operation mode; it can be both the battery group measurement, but also can be measured in a single section.
- Applicable to battery manufacturers, base station operation and maintenance, data centers, and substation maintenance.
Specifications:
| Measurement Range | |
| Conductance | 20～19,990S |
| Internal Resistance | 0.01mΩ-120mΩ |
| Voltage | 1.000v–25v |
| Min Measurement resolution | |
| Conductance | 1S |
| Internal Resistance | 0.01mΩ |
| Voltage | 1mV |
| Measurement Accuracy | |
| Conductance | ±0.5%rdg ±6dgt |
| Internal Resistance | ±0.5%rdg ±6dgt |
| Voltage | ±0.2%rdg ±6dgt |
| Working Power Supply | |
| Power Supply | 5V, Recharge lithium battery |
| Power consumption | Continuous working for 10 hours |
| Mechanical Character | |
| Storage | Internal 32G TF storage, external 32G micro-USB card reader |
| LCD Display | 800*480 Colorful, 5-inch colorful touch screen |
| Size | 171*100*35mm |
| Weight | 0.45Kg |
Features:
- Multiple measurement modes: single battery, pack battery, battery and connection resistance (optional) internal resistance measurement, and performance evaluation.
- Support online test function: Online and offline measurement without disassembling or disconnecting the bus bar for measurement, with strong anti-interference ability.
- Compact design: 0.5 kg weight, handheld design, single operator, fully automatic measurement.
- Touch screen / key double choice: 5-inch touch screen humanized design to directly click the screen or key menu, convenient for parameter setting and data analysis, especially in the environment with insulated gloves.
- Adopt the four-wire Kelvin algorithm: accurately measure the battery's internal resistance, which is suitable for more than 98% of the battery connection installation mode and pole form. Simple to use: intelligent, digital design, full English operation menu, will not affect the working condition of the battery.
- Various battery internal resistance testing standards: built-in complete battery internal resistance parameters reference value for your accurate measurement and support reference value input.
- Powerful storage capacity: This can store thousands of testing data for further query and analysis, and the data can also be exported to PC software with a USB flash drive to generate charts and curves for analysis.
- With report printing function: the test report can be easily imported into Excel and Word files, and printed into a report in the specified format, which is convenient for management to reduce the workload.
