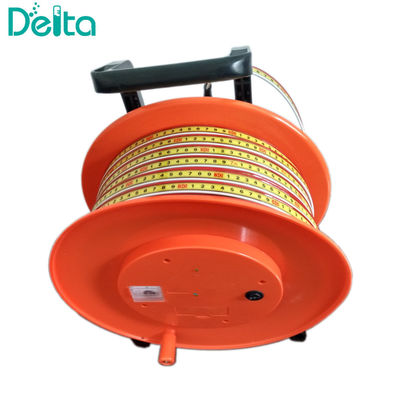

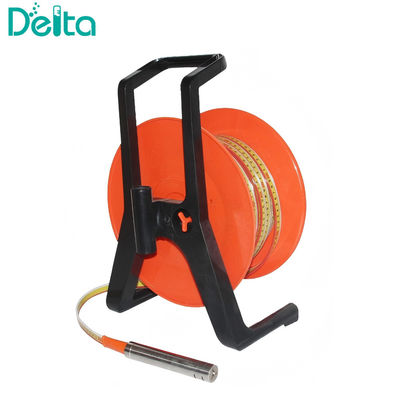

WML Handheld Water Level Indicator Deep Well Meter DIP Meter with Probe
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | WLM |
| Minimum Order Quantity | 1 set WML Handheld Water Level Indicator Deep Well Meter DIP Meter |
| Price | USD1.0 / set |
| Packaging Details | Packed in wooden case |
| Delivery Time | In 10 days after the order is confirmed. |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Cooper | Ruler Length | 30m, 50m, 100m, 200m, 300m, 400m, 500m |
|---|---|---|---|
| Name | Water Level Indicator Deep Well Meter DIP Meter With Probe | Usage | Measure Water Level Of Well, Borehole And Pipe. |
| Composed Of | Probe, Steel Ruler, Receiving System, Reel | Probe Diameter | Φ15mm*160mm |
| Width Of Ruler | 9.8mm | Ruler Cable Coating | PE,PU |
| Conductor | Tinned Copper Wire | Battery | 9V |
| Reel Material | Steel | Delivery Lead Time | In 5 Days |
| Highlight | handheld water level indicator,deep well dip meter,borehole inspection probe |
||
Product Description
WML Handheld Water Level Indicator Deep Well Meter DIP Meter with Probe
Brief Introduction:
The WLM WML Handheld Water Level Indicator Deep Well Meter DIP Meter offers a precision-engineered solution for accurate water level measurements. Perfectly designed for assessing the water level in wells, boreholes, and pipes, this device is indispensable for tracking groundwater levels and evaluating seepage lines in earth and rock dams with unparalleled accuracy.
This versatile meter is ideal for both construction projects and long-term safety monitoring, ensuring the ongoing integrity of your project.

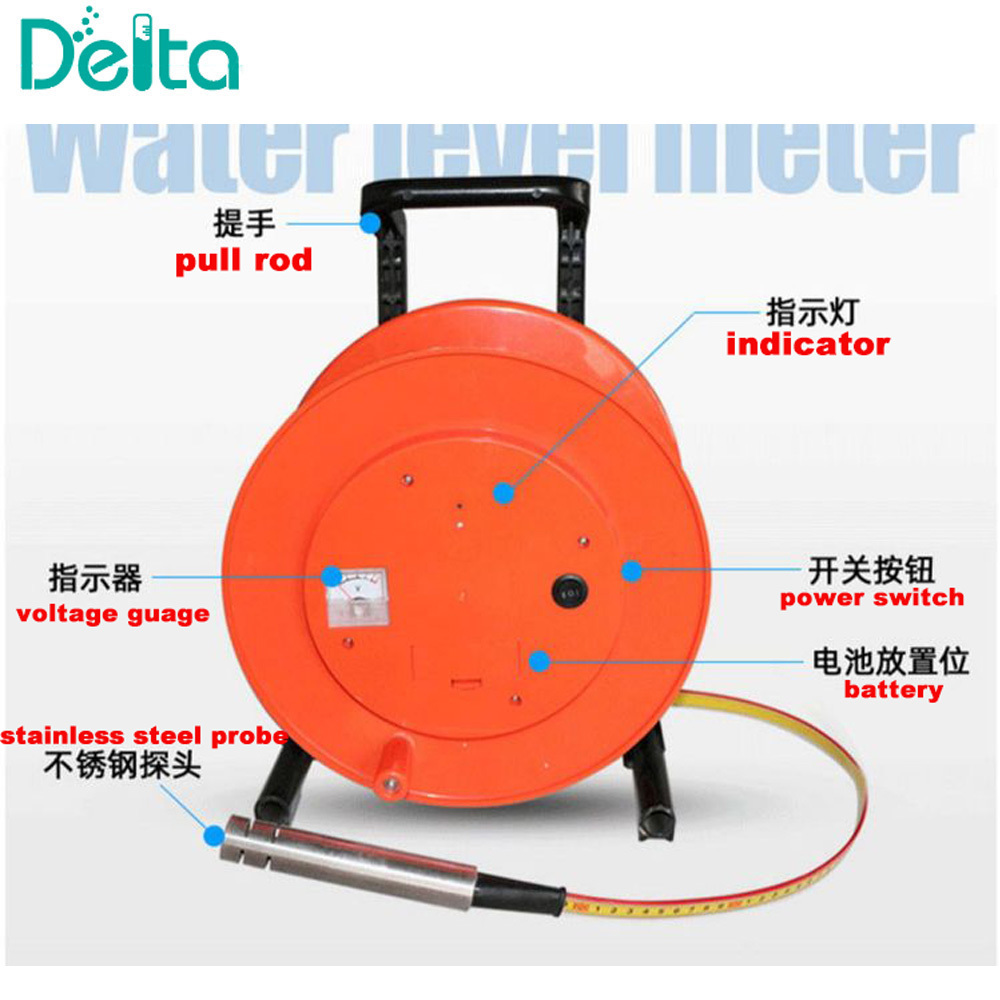

Structure:

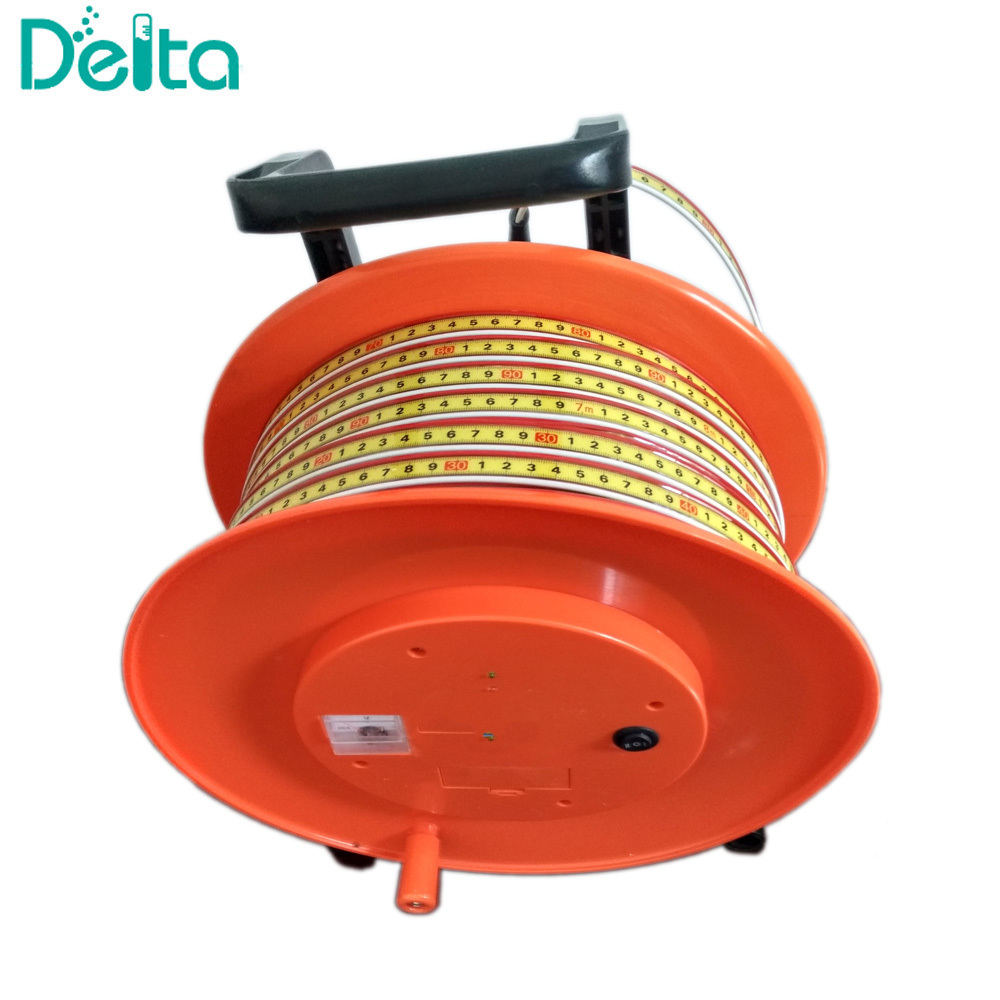

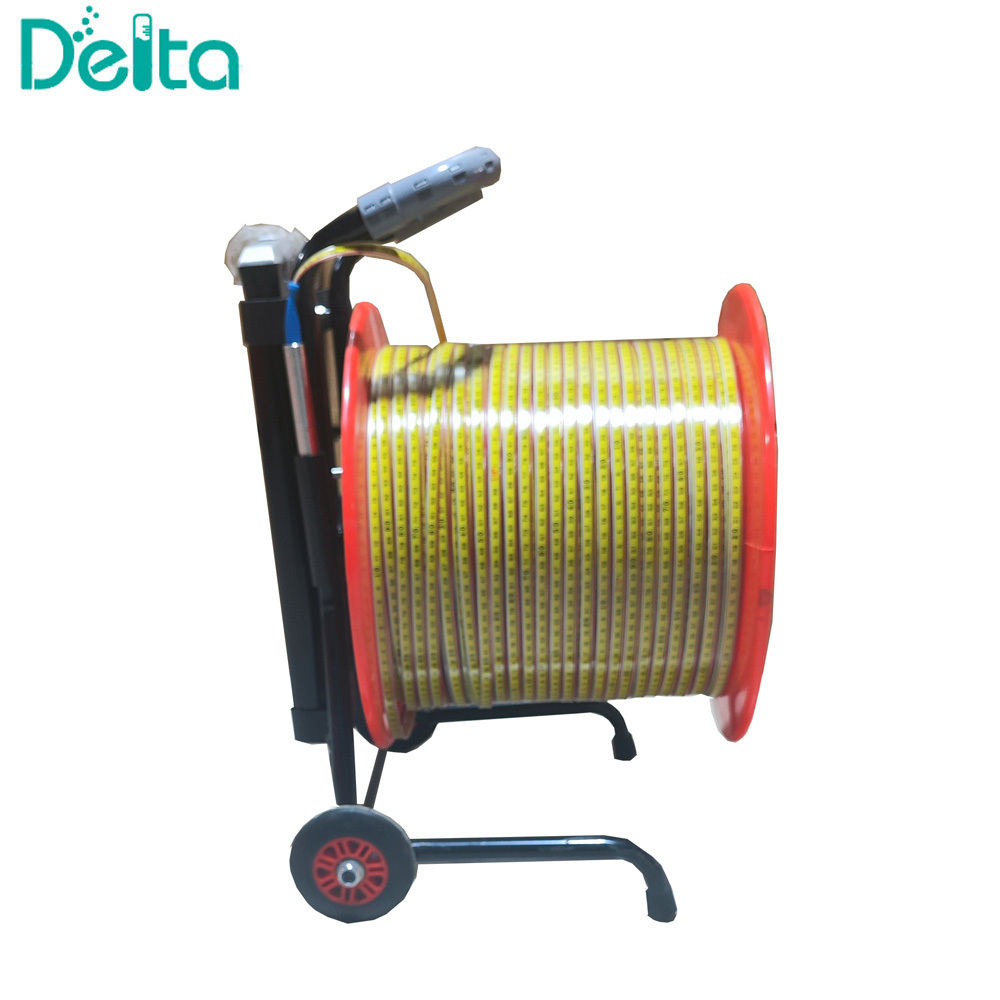

The WLM WML Handheld Water Level Indicator Deep Well Meter DIP Meter is an integrated system featuring a durable probe, an innovative steel ruler, an advanced receiving system, and a compact reel design.
- Probe: Crafted from high-grade stainless steel, the probe features a water-resistant contact point. It automatically activates the receiving system upon contact with the water surface and deactivates once out of contact, ensuring efficient operation.
- Steel ruler tape: Utilizing cutting-edge plastic technology, the steel ruler is seamlessly bonded with the cable, providing rust protection and simplifying the measurement process for enhanced convenience and precision.
- Receiving system: This sophisticated system comprises a speaker and a peak indicator. The speaker delivers a consistent buzzing sound, while peak indication is managed via a voltmeter. A switch allows seamless selection of the preferred system, ensuring consistent accuracy across all readings.
- Frame: Ingeniously designed with a reel and bracket, the frame houses the receiving system and battery inside the reel, while the steel ruler cable is neatly wrapped around the exterior, optimizing functionality and ease of use.
Main Parameters:
| Model | Max. test depth / (m) | Length(mm) | Width(mm) | Height(mm) | Probe(mm) | Width of ruler(mm) | Weight (kg) |
| WLM-30 | 30 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.85 |
| WLM-50 | 50 | 310 | 250 | 430 | Φ15*160 | 9.8 | 2.95 |
| WLM-100 | 100 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.3 |
| WLM-150 | 150 | 310 | 250 | 430 | Φ15*160 | 9.8 | 4.7 |
| WLM-200 | 200 | 310 | 250 | 430 | Φ15*160 | 9.8 | 7.3 |
| WLM-300 | 300 | 360 | 250 | 430 | Φ15*160 | 9.8 | 7.85 |
